FlutterViewController() Category Reference

#include <FlutterViewController_Internal.h>

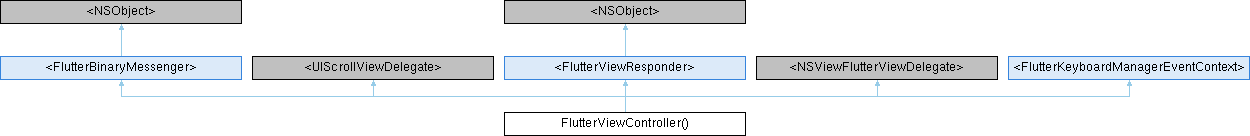

Inheritance diagram for FlutterViewController():
<FlutterBinaryMessenger> <FlutterKeyboardInsetManagerDelegate> <FlutterViewResponder> <FlutterKeyboardManagerEventContext>

Instance Methods

(UIHoverGestureRecognizer *hoverGestureRecognizer) - API_AVAILABLE

(UIPanGestureRecognizer *discreteScrollingPanGestureRecognizer) - API_AVAILABLE

(UIPanGestureRecognizer *continuousScrollingPanGestureRecognizer) - API_AVAILABLE

(UIPinchGestureRecognizer *pinchGestureRecognizer) - API_AVAILABLE

(UIRotationGestureRecognizer *rotationGestureRecognizer) - API_AVAILABLE

(void) - addInternalPlugins
 Creates and registers plugins used by this view controller.

(void) - deregisterNotifications

(void) - onFirstFrameRendered
 Called when the first frame has been rendered. Invokes any registered first-frame callback.

(FlutterRestorationPlugin *) - restorationPlugin

(FlutterTextInputPlugin *) - textInputPlugin

(void) - handlePressEvent:nextAction:

(void) - addInternalPlugins

(void) - deregisterNotifications

(BOOL) - supportsShowingSystemContextMenu

(BOOL) - stateIsActive

(BOOL) - stateIsBackground

(BOOL) - launchEngine

(void) - configureTrackingArea

(void) - dispatchMouseEvent:

(void) - dispatchGestureEvent:

(void) - dispatchMouseEvent:phase:

(BOOL) - isDispatchingKeyEvent:

(void) - setUpWithEngine:viewIdentifier:

(void) - detachFromEngine

(void) - notifySemanticsEnabledChanged

(void) - updateSemantics:

(void) - updateWideGamutForScreen

(void) - dispose

- Instance Methods inherited from <FlutterBinaryMessenger>
(NSObject< FlutterTaskQueue > *) - makeBackgroundTaskQueue
 TODO(gaaclarke): Remove optional when macos supports Background Platform Channels.

(FlutterBinaryMessengerConnection) - setMessageHandlerOnChannel:binaryMessageHandler:taskQueue:

(void) - sendOnChannel:message:

(void) - sendOnChannel:message:binaryReply:

(FlutterBinaryMessengerConnection) - setMessageHandlerOnChannel:binaryMessageHandler:

(void) - cleanUpConnection:

- Instance Methods inherited from <FlutterKeyboardInsetManagerDelegate>
(void) - updateViewportMetricsWithInset:
 Updates the viewport metrics with the new bottom inset.

(CGFloat) - physicalViewInsetBottom
 Returns the current physical bottom view inset.

(UIView *) - view
 Returns the view associated with the delegate.

(FlutterEngine *) - engine
 Returns the engine associated with the delegate.

(UIScreen *) - flutterScreenIfViewLoaded
 Returns the UIScreen associated with the Flutter view, if the view is loaded.

(BOOL) - isPadInSlideOverOrStageManagerMode
 Returns whether the device is an iPad and in Slide Over or Stage Manager mode.

(CGRect) - convertViewRectToScreen:
 Converts a rectangle from the view's coordinate system to the screen's coordinate system.

(BOOL) - isViewLoaded
 Returns whether the delegate's view is currently loaded.

- Instance Methods inherited from <FlutterViewResponder>
(void) - touchesBegan:withEvent:

(void) - touchesMoved:withEvent:

(void) - touchesEnded:withEvent:

(void) - touchesCancelled:withEvent:

(void) - touchesEstimatedPropertiesUpdated:

(void) - forceTouchesCancelled:

(BOOL) - platformViewShouldAcceptTouchAtTouchBeganLocation:

- Instance Methods inherited from <FlutterKeyboardManagerEventContext>
(BOOL) - onTextInputKeyEvent:


Properties

int64_t viewIdentifier

FlutterView * flutterView

void(^ flutterViewRenderedCallback )(void)

FlutterSplashScreenManager * splashScreenManager

UIInterfaceOrientationMask orientationPreferences

UIStatusBarStyle statusBarStyle

BOOL initialized

BOOL engineNeedsLaunch

BOOL awokenFromNib

BOOL displayingFlutterUI

BOOL isHomeIndicatorHidden

BOOL isPresentingViewControllerAnimating

BOOL flutterPrefersStatusBarHidden

NSMutableSet< NSNumber * > * ongoingTouches

UIScrollView * scrollView

BOOL shouldIgnoreViewportMetricsUpdatesDuringRotation

NSTimeInterval scrollInertiaEventStartline
 Timestamp after which a scroll inertia cancel event should be inferred.

NSTimeInterval scrollInertiaEventAppKitDeadline

FlutterVSyncClient * touchRateCorrectionVSyncClient

CGSize sizeBeforeAutoResized

BOOL isPresentingViewController

BOOL isVoiceOverRunning

FlutterKeyboardManager * keyboardManager

FlutterKeyboardInsetManager * keyboardInsetManager

NSString * applicationLocale

BOOL prefersStatusBarHidden
 Whether the status bar is preferred hidden.

FlutterPlatformViewsController * platformViewsController

FlutterAccessibilityFeatures * accessibilityFeatures

NSTrackingArea * trackingArea

MouseState mouseState

id keyUpMonitor

std::weak_ptr< flutter::AccessibilityBridgeMac > accessibilityBridge

- Properties inherited from <FlutterViewResponder>
UIView * view

- Properties inherited from <FlutterKeyboardManagerEventContext>
NSResponder * nextResponder


Detailed Description

Private interface declaration for FlutterViewController.

Definition at line 69 of file FlutterViewController.mm.

Method Documentation

◆ addInternalPlugins [1/2]

- (void) addInternalPlugins

Creates and registers plugins used by this view controller.

◆ addInternalPlugins [2/2]

- (void) addInternalPlugins

◆ API_AVAILABLE [1/5]

- (UIHoverGestureRecognizer *hoverGestureRecognizer) API_AVAILABLE (ios(13.4))

◆ API_AVAILABLE [2/5]

- (UIPanGestureRecognizer *discreteScrollingPanGestureRecognizer) API_AVAILABLE (ios(13.4))

◆ API_AVAILABLE [3/5]

- (UIPanGestureRecognizer *continuousScrollingPanGestureRecognizer) API_AVAILABLE (ios(13.4))

◆ API_AVAILABLE [4/5]

- (UIPinchGestureRecognizer *pinchGestureRecognizer) API_AVAILABLE (ios(13.4))

◆ API_AVAILABLE [5/5]

- (UIRotationGestureRecognizer *rotationGestureRecognizer) API_AVAILABLE (ios(13.4))

◆ configureTrackingArea

- (void) configureTrackingArea

Updates |trackingArea| for the current tracking settings, creating it with the correct mode if tracking is enabled, or removing it if not.

◆ deregisterNotifications [1/2]

- (void) deregisterNotifications

◆ deregisterNotifications [2/2]

- (void) deregisterNotifications

◆ detachFromEngine

- (void) detachFromEngine

Reset the engine and id of this controller.

This method is called by FlutterEngine.

◆ dispatchGestureEvent:

- (void) dispatchGestureEvent: (nonnull NSEvent *)  event

Calls dispatchMouseEvent:phase: with a phase determined by event.phase.

◆ dispatchMouseEvent:

- (void) dispatchMouseEvent: (nonnull NSEvent *)  event

Calls dispatchMouseEvent:phase: with a phase determined by self.mouseState.

mouseState.buttons should be updated before calling this method.

◆ dispatchMouseEvent:phase:

- (void) dispatchMouseEvent: (nonnull NSEvent *)  event
phase: (FlutterPointerPhase)  phase

Converts |event| to a FlutterPointerEvent with the given phase, and sends it to the engine.

◆ dispose

- (void) dispose

Removes this controller from the engine. The controller is removed from the engine on dealloc, however in multi-window scenario the controller needs to be unregistered from the engine eagerly - because the FlutterView needs to be removed from the Flutter isolate before destroying the controller and window.

◆ handlePressEvent:nextAction:

- (void) handlePressEvent: (FlutterUIPressProxy *)  press
nextAction: (ios(13.4))  API_AVAILABLE

◆ isDispatchingKeyEvent:

- (BOOL) isDispatchingKeyEvent: (nonnull NSEvent *)  event

Returns YES if provided event is being currently redispatched by keyboard manager.

◆ launchEngine

- (BOOL) launchEngine

Starts running |engine|, including any initial setup.

◆ notifySemanticsEnabledChanged

- (void) notifySemanticsEnabledChanged

Called by the associated FlutterEngine when FlutterEngine::semanticsEnabled has changed.

◆ onFirstFrameRendered

- (void) onFirstFrameRendered

Called when the first frame has been rendered. Invokes any registered first-frame callback.

◆ restorationPlugin

- (FlutterRestorationPlugin *) restorationPlugin

◆ setUpWithEngine:viewIdentifier:

- (void) setUpWithEngine: (nonnull FlutterEngine *)  engine
viewIdentifier: (FlutterViewIdentifier)  viewIdentifier

Set up the controller with engine and id, and other engine-level classes.

This method is called by FlutterEngine. A view controller must be set up before being used, and must be set up only once until detachFromEngine:.

◆ stateIsActive

- (BOOL) stateIsActive

◆ stateIsBackground

- (BOOL) stateIsBackground

◆ supportsShowingSystemContextMenu

- (BOOL) supportsShowingSystemContextMenu

◆ textInputPlugin

- (FlutterTextInputPlugin *) textInputPlugin

◆ updateSemantics:

- (void) updateSemantics: (nonnull const FlutterSemanticsUpdate2 *)  update

Notify from the framework that the semantics for this view needs to be updated.

◆ updateWideGamutForScreen

- (void) updateWideGamutForScreen

Updates the wide gamut surface format based on the current screen's display gamut. Should be called when the window moves to a different screen.

Property Documentation

◆ accessibilityBridge

- (weak_ptr<)flutter:
readnonatomicassign

Definition at line 21 of file FlutterViewController_Internal.h.

◆ accessibilityFeatures

- (FlutterAccessibilityFeatures*) accessibilityFeatures
readwritenonatomicstrong

Definition at line 64 of file FlutterViewController_Internal.h.

◆ applicationLocale

- (NSString *) applicationLocale
readwritenonatomicassign

Definition at line 51 of file FlutterViewController_Internal.h.

◆ awokenFromNib

- (BOOL) awokenFromNib
readwritenonatomicassign

Definition at line 88 of file FlutterViewController.mm.

◆ displayingFlutterUI

- (BOOL) displayingFlutterUI
readwritenonatomicassign

Definition at line 90 of file FlutterViewController.mm.

◆ engineNeedsLaunch

- (BOOL) engineNeedsLaunch
readwritenonatomicassign

Definition at line 87 of file FlutterViewController.mm.

◆ flutterPrefersStatusBarHidden

- (BOOL) flutterPrefersStatusBarHidden
readwritenonatomicassign

Definition at line 95 of file FlutterViewController.mm.

◆ flutterView

- (FlutterView *) flutterView
readwritenonatomicassign

Definition at line 79 of file FlutterViewController.mm.

◆ flutterViewRenderedCallback

- (void(^ flutterViewRenderedCallback) (void))
readwritenonatomicstrong

◆ initialized

- (BOOL) initialized
readwritenonatomicassign

Definition at line 86 of file FlutterViewController.mm.

◆ isHomeIndicatorHidden

- (BOOL) isHomeIndicatorHidden
readwritenonatomicassign

Definition at line 91 of file FlutterViewController.mm.

◆ isPresentingViewController

- (BOOL) isPresentingViewController
readnonatomicassign

Definition at line 47 of file FlutterViewController_Internal.h.

◆ isPresentingViewControllerAnimating

- (BOOL) isPresentingViewControllerAnimating
readwritenonatomicassign

Definition at line 92 of file FlutterViewController.mm.

◆ isVoiceOverRunning

- (BOOL) isVoiceOverRunning
readnonatomicassign

Definition at line 48 of file FlutterViewController_Internal.h.

◆ keyboardInsetManager

- (FlutterKeyboardInsetManager*) keyboardInsetManager
readwritenonatomicstrong

Definition at line 50 of file FlutterViewController_Internal.h.

◆ keyboardManager

- (FlutterKeyboardManager*) keyboardManager
readwritenonatomicstrong

Definition at line 49 of file FlutterViewController_Internal.h.

◆ keyUpMonitor

- (id) keyUpMonitor
readwritenonatomicassign

Event monitor for keyUp events.

Definition at line 178 of file FlutterViewController.mm.

◆ mouseState

- (MouseState) mouseState
readwritenonatomicassign

The current state of the mouse and the sent mouse events.

Definition at line 173 of file FlutterViewController.mm.

◆ ongoingTouches

- (NSMutableSet<NSNumber*>*) ongoingTouches
readwritenonatomicstrong

Definition at line 97 of file FlutterViewController.mm.

◆ orientationPreferences

- (UIInterfaceOrientationMask) orientationPreferences
readwritenonatomicassign

Definition at line 84 of file FlutterViewController.mm.

◆ platformViewsController

- (FlutterPlatformViewsController*) platformViewsController
readnonatomicassign

Definition at line 62 of file FlutterViewController_Internal.h.

◆ prefersStatusBarHidden

- (BOOL) prefersStatusBarHidden
readwritenonatomicassign

Whether the status bar is preferred hidden.

   This overrides the |UIViewController:prefersStatusBarHidden|.
   This is ignored when `UIViewControllerBasedStatusBarAppearance` in info.plist
   of the app project is `false`.

Definition at line 60 of file FlutterViewController_Internal.h.

◆ scrollInertiaEventAppKitDeadline

- (NSTimeInterval) scrollInertiaEventAppKitDeadline
readwritenonatomicassign

When an iOS app is running in emulation on an Apple Silicon Mac, trackpad input goes through a translation layer, and events are not received with precise deltas. Due to this, we can't rely on checking for a stationary trackpad event. Fortunately, AppKit will send an event of type UIEventTypeScroll following a scroll when inertia should stop. This field is needed to estimate if such an event represents the natural end of scrolling inertia or a user-initiated cancellation.

Definition at line 121 of file FlutterViewController.mm.

◆ scrollInertiaEventStartline

- (NSTimeInterval) scrollInertiaEventStartline
readwritenonatomicassign

Timestamp after which a scroll inertia cancel event should be inferred.

Keyboard animation properties

Definition at line 113 of file FlutterViewController.mm.

◆ scrollView

- (UIScrollView*) scrollView
readwritenonatomicstrong

Definition at line 102 of file FlutterViewController.mm.

◆ shouldIgnoreViewportMetricsUpdatesDuringRotation

- (BOOL) shouldIgnoreViewportMetricsUpdatesDuringRotation
readwritenonatomicassign

Whether we should ignore viewport metrics updates during rotation transition.

Definition at line 107 of file FlutterViewController.mm.

◆ sizeBeforeAutoResized

- (CGSize) sizeBeforeAutoResized
readwritenonatomicassign

The size of the FlutterView's frame, as determined by auto-layout, before Flutter's custom auto-resizing constraints are applied.

Definition at line 133 of file FlutterViewController.mm.

◆ splashScreenManager

- (FlutterSplashScreenManager*) splashScreenManager
readwritenonatomicstrong

Definition at line 82 of file FlutterViewController.mm.

◆ statusBarStyle

- (UIStatusBarStyle) statusBarStyle
readwritenonatomicassign

Definition at line 85 of file FlutterViewController.mm.

◆ touchRateCorrectionVSyncClient

- (FlutterVSyncClient*) touchRateCorrectionVSyncClient
readwritenonatomicstrong

FlutterVSyncClient for touch events delivery frame rate correction.

On promotion devices(eg: iPhone13 Pro), the delivery frame rate of touch events is 60HZ but the frame rate of rendering is 120HZ, which is different and will leads jitter and laggy. With this FlutterVSyncClient, it can correct the delivery frame rate of touch events to let it keep the same with frame rate of rendering.

Definition at line 129 of file FlutterViewController.mm.

◆ trackingArea

- (NSTrackingArea*) trackingArea
readwritenonatomicassign

The tracking area used to generate hover events, if enabled.

Definition at line 168 of file FlutterViewController.mm.

◆ viewIdentifier

- (int64_t) viewIdentifier
readnonatomicassign

Definition at line 75 of file FlutterViewController.mm.

The documentation for this category was generated from the following files:
