Represents an image whose allocation is (usually) resident on device memory. More...

#include <dl_image.h>

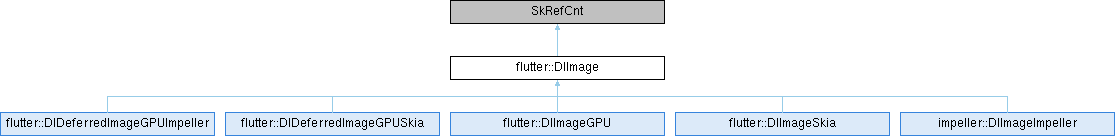

Inheritance diagram for flutter::DlImage:

Public Types
enum class	OwningContext { kRaster , kIO }

Public Member Functions
virtual	~DlImage ()

virtual sk_sp< SkImage >	skia_image () const =0
	If this display list image is meant to be used by the Skia backend, an SkImage instance. Null otherwise.

virtual std::shared_ptr< impeller::Texture >	impeller_texture () const =0
	If this display list image is meant to be used by the Impeller backend, an Impeller texture instance. Null otherwise.

virtual bool	isOpaque () const =0
	If the pixel format of this image ignores alpha, this returns true. This method might conservatively return false when it cannot guarnatee an opaque image, for example when the pixel format of the image supports alpha but the image is made up of entirely opaque pixels.

virtual bool	isTextureBacked () const =0

virtual bool	isUIThreadSafe () const =0
	If the underlying platform image held by this object has no threading requirements for the release of that image (or if arrangements have already been made to forward that image to the correct thread upon deletion), this method returns true.

virtual DlISize	GetSize () const =0

virtual size_t	GetApproximateByteSize () const =0

int	width () const

int	height () const

DlIRect	GetBounds () const

virtual OwningContext	owning_context () const

virtual std::optional< std::string >	get_error () const

bool	Equals (const DlImage *other) const

bool	Equals (const DlImage &other) const

bool	Equals (const sk_sp< const DlImage > &other) const

Static Public Member Functions
static sk_sp< DlImage >	Make (const SkImage *image)

static sk_sp< DlImage >	Make (sk_sp< SkImage > image)

Protected Member Functions
	DlImage ()

Detailed Description

Represents an image whose allocation is (usually) resident on device memory.

Since it is usually impossible or expensive to transmute images for one rendering backend to another, these objects are backend specific.

Definition at line 32 of file dl_image.h.

Member Enumeration Documentation

◆ OwningContext

enum class flutter::DlImage::OwningContext

strong

Enumerator
kRaster
kIO

Definition at line 35 of file dl_image.h.

35{ kRaster, kIO };

flutter::DlImage::OwningContext::kRaster

@ kRaster

flutter::DlImage::OwningContext::kIO

@ kIO

Constructor & Destructor Documentation

◆ ~DlImage()

flutter::DlImage::~DlImage ( )

virtualdefault

◆ DlImage()

flutter::DlImage::DlImage ( )

protecteddefault

Member Function Documentation

◆ Equals() [1/3]

bool flutter::DlImage::Equals ( const DlImage & other ) const

inline

Definition at line 138 of file dl_image.h.

138{ return Equals(&other); }

flutter::DlImage::Equals

bool Equals(const DlImage *other) const

Definition dl_image.h:127

References Equals().

Referenced by Equals().

◆ Equals() [2/3]

bool flutter::DlImage::Equals ( const DlImage * other ) const

inline

Definition at line 127 of file dl_image.h.

                                          {
    if (!other) {
      return false;
    }
    if (this == other) {
      return true;
    }
    return skia_image() == other->skia_image() &&
           impeller_texture() == other->impeller_texture();
  }

References impeller_texture(), and skia_image().

Referenced by Equals().

◆ Equals() [3/3]

bool flutter::DlImage::Equals ( const sk_sp< const DlImage > & other ) const

inline

Definition at line 140 of file dl_image.h.

                                                       {
    return Equals(other.get());
  }

References Equals().

◆ get_error()

std::optional< std::string > flutter::DlImage::get_error ( ) const

virtual

Returns: An error, if any, that occurred when trying to create the image.

Reimplemented in flutter::DlDeferredImageGPUSkia.

Definition at line 35 of file dl_image.cc.

                                                {
  return std::nullopt;
}

◆ GetApproximateByteSize()

virtual size_t flutter::DlImage::GetApproximateByteSize ( ) const

pure virtual

Returns: The approximate byte size of the allocation of this image. This takes into account details such as mip-mapping. The allocation is usually resident in device memory.

Implemented in flutter::DlImageSkia, impeller::DlImageImpeller, flutter::DlDeferredImageGPUImpeller, flutter::DlDeferredImageGPUSkia, and flutter::DlImageGPU.

◆ GetBounds()

DlIRect flutter::DlImage::GetBounds ( ) const

Returns: The bounds of the pixel grid with 0, 0 as origin. A convenience method that calls |DlImage::dimensions|.

Definition at line 31 of file dl_image.cc.

                                 {
  return DlIRect::MakeSize(GetSize());
}

References GetSize(), and impeller::TRect< T >::MakeSize().

◆ GetSize()

virtual DlISize flutter::DlImage::GetSize ( ) const

pure virtual

Returns: The dimensions of the pixel grid.

Implemented in flutter::DlImageSkia, impeller::DlImageImpeller, flutter::DlDeferredImageGPUImpeller, flutter::DlDeferredImageGPUSkia, and flutter::DlImageGPU.

Referenced by GetBounds(), height(), and width().

◆ height()

int flutter::DlImage::height ( ) const

Returns: The height of the pixel grid. A convenience method that calls |DlImage::dimensions|.

Definition at line 27 of file dl_image.cc.

                          {
  return GetSize().height;
};

References GetSize(), and impeller::TSize< T >::height.

◆ impeller_texture()

virtual std::shared_ptr< impeller::Texture > flutter::DlImage::impeller_texture ( ) const

pure virtual

If this display list image is meant to be used by the Impeller backend, an Impeller texture instance. Null otherwise.

Returns: An Impeller texture instance or null.

Implemented in flutter::DlImageSkia, impeller::DlImageImpeller, flutter::DlDeferredImageGPUImpeller, flutter::DlDeferredImageGPUSkia, and flutter::DlImageGPU.

Referenced by Equals().

◆ isOpaque()

virtual bool flutter::DlImage::isOpaque ( ) const

pure virtual

If the pixel format of this image ignores alpha, this returns true. This method might conservatively return false when it cannot guarnatee an opaque image, for example when the pixel format of the image supports alpha but the image is made up of entirely opaque pixels.

Returns: True if the pixel format of this image ignores alpha.

Implemented in flutter::DlImageSkia, impeller::DlImageImpeller, flutter::DlDeferredImageGPUImpeller, flutter::DlDeferredImageGPUSkia, and flutter::DlImageGPU.

◆ isTextureBacked()

virtual bool flutter::DlImage::isTextureBacked ( ) const

pure virtual

Implemented in flutter::DlImageSkia, impeller::DlImageImpeller, flutter::DlDeferredImageGPUImpeller, flutter::DlDeferredImageGPUSkia, and flutter::DlImageGPU.

◆ isUIThreadSafe()

virtual bool flutter::DlImage::isUIThreadSafe ( ) const

pure virtual

If the underlying platform image held by this object has no threading requirements for the release of that image (or if arrangements have already been made to forward that image to the correct thread upon deletion), this method returns true.

Returns: True if the underlying image is held in a thread-safe manner.

Implemented in flutter::DlImageSkia, impeller::DlImageImpeller, flutter::DlDeferredImageGPUImpeller, flutter::DlDeferredImageGPUSkia, and flutter::DlImageGPU.

◆ Make() [1/2]

sk_sp< DlImage > flutter::DlImage::Make ( const SkImage * image )

static

Definition at line 11 of file dl_image.cc.

                                                 {
  return Make(sk_ref_sp(image));
}

References image, and Make().

Referenced by flutter::testing::BM_DrawImage(), flutter::testing::BM_DrawImageNine(), flutter::testing::BM_DrawImageRect(), flutter::testing::CreateAllRenderingOps(), Make(), flutter::testing::MakeTestImage(), flutter::testing::MakeTestImage(), flutter::testing::MockTexture::MakeTestTexture(), flutter::RasterCache::Rasterize(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), and flutter::testing::DisplayListNopTest::test_attributes_image().

◆ Make() [2/2]

sk_sp< DlImage > flutter::DlImage::Make ( sk_sp< SkImage > image )

static

Definition at line 15 of file dl_image.cc.

                                                 {
  return sk_make_sp<DlImageSkia>(std::move(image));
}

References image.

◆ owning_context()

virtual OwningContext flutter::DlImage::owning_context ( ) const

inlinevirtual

Returns: Specifies which context was used to create this image. The image must be collected on the same task runner as its context.

Reimplemented in impeller::DlImageImpeller, flutter::DlDeferredImageGPUImpeller, and flutter::DlDeferredImageGPUSkia.

Definition at line 116 of file dl_image.h.

116{ return OwningContext::kIO; }

References kIO.

◆ skia_image()

virtual sk_sp< SkImage > flutter::DlImage::skia_image ( ) const

pure virtual

If this display list image is meant to be used by the Skia backend, an SkImage instance. Null otherwise.

Returns: A Skia image instance or null.

Implemented in flutter::DlImageSkia, impeller::DlImageImpeller, flutter::DlDeferredImageGPUImpeller, flutter::DlDeferredImageGPUSkia, and flutter::DlImageGPU.

Referenced by Equals().

◆ width()

int flutter::DlImage::width ( ) const

Returns: The width of the pixel grid. A convenience method that calls |DlImage::dimensions|.

Definition at line 23 of file dl_image.cc.

                         {
  return GetSize().width;
};

References GetSize(), and impeller::TSize< T >::width.

The documentation for this class was generated from the following files:

display_list/image/dl_image.h
display_list/image/dl_image.cc
