Public Member Functions | Static Public Member Functions | List of all members
flutter::testing::DisplayListRenderingTestBase< BaseT > Class Template Reference

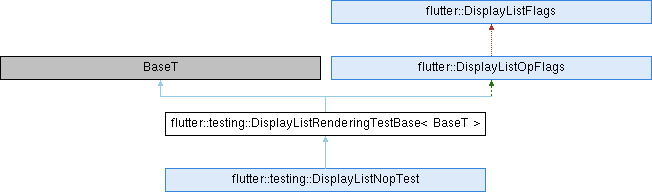

Inheritance diagram for flutter::testing::DisplayListRenderingTestBase< BaseT >:
flutter::DisplayListOpFlags flutter::DisplayListFlags flutter::testing::DisplayListNopTest

Public Member Functions

 DisplayListRenderingTestBase ()=default


Static Public Member Functions

static bool StartsWith (std::string str, std::string prefix)

static void SetUpTestSuite ()

static void TearDownTestSuite ()


Additional Inherited Members

- Static Protected Attributes inherited from flutter::DisplayListOpFlags
static constexpr DisplayListAttributeFlags kSaveLayerFlags

static constexpr DisplayListAttributeFlags kSaveLayerWithPaintFlags

static constexpr DisplayListAttributeFlags kDrawColorFlags

static constexpr DisplayListAttributeFlags kDrawPaintFlags

static constexpr DisplayListAttributeFlags kDrawHVLineFlags

static constexpr DisplayListAttributeFlags kDrawLineFlags

static constexpr DisplayListAttributeFlags kDrawRectFlags

static constexpr DisplayListAttributeFlags kDrawOvalFlags

static constexpr DisplayListAttributeFlags kDrawCircleFlags

static constexpr DisplayListAttributeFlags kDrawRRectFlags

static constexpr DisplayListAttributeFlags kDrawDRRectFlags

static constexpr DisplayListAttributeFlags kDrawRSuperellipseFlags

static constexpr DisplayListAttributeFlags kDrawPathFlags

static constexpr DisplayListAttributeFlags kDrawArcNoCenterFlags

static constexpr DisplayListAttributeFlags kDrawArcWithCenterFlags

static constexpr DisplayListAttributeFlags kDrawPointsAsPointsFlags

static constexpr DisplayListAttributeFlags kDrawPointsAsLinesFlags

static constexpr DisplayListAttributeFlags kDrawPointsAsPolygonFlags

static constexpr DisplayListAttributeFlags kDrawVerticesFlags

static constexpr DisplayListAttributeFlags kDrawImageFlags

static constexpr DisplayListAttributeFlags kDrawImageWithPaintFlags

static constexpr DisplayListAttributeFlags kDrawImageRectFlags

static constexpr DisplayListAttributeFlags kDrawImageRectWithPaintFlags

static constexpr DisplayListAttributeFlags kDrawImageNineFlags

static constexpr DisplayListAttributeFlags kDrawImageNineWithPaintFlags

static constexpr DisplayListAttributeFlags kDrawAtlasFlags

static constexpr DisplayListAttributeFlags kDrawAtlasWithPaintFlags

static constexpr DisplayListAttributeFlags kDrawDisplayListFlags

static constexpr DisplayListAttributeFlags kDrawTextFlags

static constexpr DisplayListAttributeFlags kDrawShadowFlags

static constexpr DisplayListAttributeFlags kDrawParagraphFlags


Detailed Description

template<typename BaseT>
class flutter::testing::DisplayListRenderingTestBase< BaseT >

Definition at line 2821 of file dl_rendering_unittests.cc.

Constructor & Destructor Documentation

◆ DisplayListRenderingTestBase()

template<typename BaseT >
flutter::testing::DisplayListRenderingTestBase< BaseT >::DisplayListRenderingTestBase ( )
default

Member Function Documentation

◆ SetUpTestSuite()

template<typename BaseT >
static void flutter::testing::DisplayListRenderingTestBase< BaseT >::SetUpTestSuite ( )
inlinestatic

Definition at line 2838 of file dl_rendering_unittests.cc.

2838 {
2839 bool do_software = true;
2840 bool do_opengl = false;
2841 bool do_metal = false;
2842 std::vector<std::string> args = ::testing::internal::GetArgvs();
2843 for (auto p_arg = std::next(args.begin()); p_arg != args.end(); p_arg++) {
2844 std::string arg = *p_arg;
2845 bool enable = true;
2846 if (arg == "--save-impeller-failures") {
2847 CanvasCompareTester::SaveImpellerFailureImages = true;
2848 continue;
2849 }
2850 if (StartsWith(arg, "--no")) {
2851 enable = false;
2852 arg = "-" + arg.substr(4);
2853 } else if (StartsWith(arg, "--disable")) {
2854 enable = false;
2855 arg = "--en" + arg.substr(5);
2856 }
2857 if (arg == "--enable-software") {
2858 do_software = enable;
2859 } else if (arg == "--enable-opengl" || arg == "--enable-gl") {
2860 do_opengl = enable;
2861 } else if (arg == "--enable-metal") {
2862 do_metal = enable;
2863 } else if (arg == "--enable-impeller") {
2864 RenderEnvironment::EnableImpeller = enable;
2865 }
2866 }
2867 // Multiple test suites use this test base. Make sure that they don't
2868 // double-register the supported providers.
2869 CanvasCompareTester::ClearProviders();
2870 if (do_software) {
2871 CanvasCompareTester::AddProvider(BackendType::kSoftwareBackend);
2872 }
2873 if (do_opengl) {
2874 CanvasCompareTester::AddProvider(BackendType::kOpenGlBackend);
2875 }
2876 if (do_metal) {
2877 CanvasCompareTester::AddProvider(BackendType::kMetalBackend);
2878 }
2879 std::string providers = "";
2880 for (auto& back_end : CanvasCompareTester::TestBackends) {
2881 providers += " " + DlSurfaceProvider::BackendName(back_end);
2882 }
2883 std::string libraries = " Skia";
2884 if (CanvasCompareTester::ImpellerSupported &&
2885 RenderEnvironment::EnableImpeller) {
2886 libraries += " Impeller";
2887 }
2888 FML_LOG(INFO) << "Running tests on [" << providers //
2889 << " ], and [" << libraries << " ]";
2890 }
flutter::testing::DisplayListRenderingTestBase::StartsWith
static bool StartsWith(std::string str, std::string prefix)
Definition dl_rendering_unittests.cc:2826
flutter::testing::DlSurfaceProvider::BackendName
static std::string BackendName(BackendType type)
Definition dl_test_surface_provider.cc:12
args
G_BEGIN_DECLS G_MODULE_EXPORT FlValue * args
Definition fl_event_channel.h:89
FML_LOG
#define FML_LOG(severity)
Definition logging.h:101

References flutter::testing::CanvasCompareTester::AddProvider(), args, flutter::testing::DlSurfaceProvider::BackendName(), flutter::testing::CanvasCompareTester::ClearProviders(), flutter::testing::RenderEnvironment::EnableImpeller, FML_LOG, flutter::testing::CanvasCompareTester::ImpellerSupported, flutter::testing::CanvasCompareTester::SaveImpellerFailureImages, flutter::testing::DisplayListRenderingTestBase< BaseT >::StartsWith(), and flutter::testing::CanvasCompareTester::TestBackends.

◆ StartsWith()

template<typename BaseT >
static bool flutter::testing::DisplayListRenderingTestBase< BaseT >::StartsWith ( std::string  str,
std::string  prefix
)
inlinestatic

Definition at line 2826 of file dl_rendering_unittests.cc.

2826 {
2827 if (prefix.length() > str.length()) {
2828 return false;
2829 }
2830 for (size_t i = 0; i < prefix.length(); i++) {
2831 if (str[i] != prefix[i]) {
2832 return false;
2833 }
2834 }
2835 return true;
2836 }
i
int i
Definition fl_socket_accessible.cc:18

References i.

Referenced by flutter::testing::DisplayListRenderingTestBase< BaseT >::SetUpTestSuite().

◆ TearDownTestSuite()

template<typename BaseT >
static void flutter::testing::DisplayListRenderingTestBase< BaseT >::TearDownTestSuite ( )
inlinestatic

Definition at line 2892 of file dl_rendering_unittests.cc.

2892 {
2893 if (CanvasCompareTester::ImpellerFailureImages.size() > 0) {
2894 FML_LOG(INFO);
2895 FML_LOG(INFO) << CanvasCompareTester::ImpellerFailureImages.size()
2896 << " images saved in "
2897 << CanvasCompareTester::ImpellerFailureImageDirectory;
2898 for (const auto& filename : CanvasCompareTester::ImpellerFailureImages) {
2899 FML_LOG(INFO) << " " << filename;
2900 }
2901 FML_LOG(INFO);
2902 }
2903 }
flutter::testing::CanvasCompareTester::ImpellerFailureImages
static std::vector< std::string > ImpellerFailureImages
Definition dl_rendering_unittests.cc:1112
flutter::size
it will be possible to load the file into Perfetto s trace viewer use test Running tests that layout and measure text will not yield consistent results across various platforms Enabling this option will make font resolution default to the Ahem test font on all disable asset Prevents usage of any non test fonts unless they were explicitly Loaded via prefetched default font Indicates whether the embedding started a prefetch of the default font manager before creating the engine run In non interactive keep the shell running after the Dart script has completed enable serial On low power devices with low core running concurrent GC tasks on threads can cause them to contend with the UI thread which could potentially lead to jank This option turns off all concurrent GC activities domain network JSON encoded network policy per domain This overrides the DisallowInsecureConnections switch Embedder can specify whether to allow or disallow insecure connections at a domain level old gen heap size
Definition switch_defs.h:241

References FML_LOG, flutter::testing::CanvasCompareTester::ImpellerFailureImageDirectory, flutter::testing::CanvasCompareTester::ImpellerFailureImages, and flutter::size.

The documentation for this class was generated from the following file:
