fml::TaskRunner Class Reference

#include <task_runner.h>

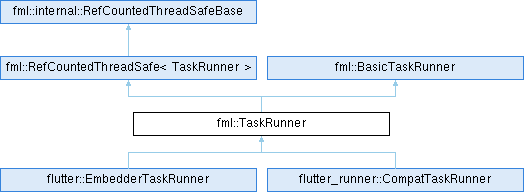

Inheritance diagram for fml::TaskRunner:

Public Member Functions
virtual	~TaskRunner ()
virtual void	PostTask (const fml::closure &task) override
virtual void	PostTaskForTime (const fml::closure &task, fml::TimePoint target_time)
virtual void	PostDelayedTask (const fml::closure &task, fml::TimeDelta delay)
virtual bool	RunsTasksOnCurrentThread ()
virtual TaskQueueId	GetTaskQueueId ()
Public Member Functions inherited from fml::RefCountedThreadSafe< TaskRunner >
void	Release () const
Public Member Functions inherited from fml::internal::RefCountedThreadSafeBase
void	AddRef () const
bool	HasOneRef () const
void	AssertHasOneRef () const

Static Public Member Functions
static void	RunNowOrPostTask (const fml::RefPtr< fml::TaskRunner > &runner, const fml::closure &task)
static void	RunNowAndFlushMessages (const fml::RefPtr< fml::TaskRunner > &runner, const fml::closure &task)

Protected Member Functions
	TaskRunner (fml::RefPtr< MessageLoopImpl > loop)
Protected Member Functions inherited from fml::RefCountedThreadSafe< TaskRunner >
	RefCountedThreadSafe ()
	~RefCountedThreadSafe ()
Protected Member Functions inherited from fml::internal::RefCountedThreadSafeBase
	RefCountedThreadSafeBase ()
	~RefCountedThreadSafeBase ()
bool	Release () const
void	Adopt ()

Detailed Description

The object for scheduling tasks on a fml::MessageLoop.

Typically there is one TaskRunner associated with each thread. When one wants to execute an operation on that thread they post a task to the TaskRunner.

See also

fml::MessageLoop

Definition at line 34 of file task_runner.h.

Constructor & Destructor Documentation

~TaskRunner()

fml::TaskRunner::~TaskRunner ( )

virtualdefault

TaskRunner()

fml::TaskRunner::TaskRunner ( fml::RefPtr< MessageLoopImpl >  loop )

explicitprotected

Definition at line 19 of file task_runner.cc.

    : loop_(std::move(loop)) {}

Member Function Documentation

GetTaskQueueId()

TaskQueueId fml::TaskRunner::GetTaskQueueId ( )

virtual

Returns the unique identifier associated with the TaskRunner.

See also

fml::MessageLoopTaskQueues

Will be TaskQueueId::kInvalid for embedder supplied task runners that are not associated with a task queue.

Definition at line 38 of file task_runner.cc.

                                       {
  FML_DCHECK(loop_);
  return loop_->GetTaskQueueId();
}

References FML_DCHECK.

Referenced by flutter::VsyncWaiter::FireCallback(), fml::testing::TaskQueueWrapper::GetTaskQueueId(), flutter::testing::GetThreadMergerFromRasterThread(), flutter::Engine::Run(), flutter::EmbedderEngine::RunTask(), flutter::Rasterizer::Setup(), fml::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), and flutter::testing::TEST_F().

PostDelayedTask()

void fml::TaskRunner::PostDelayedTask ( const fml::closure &  task, fml::TimeDelta  delay  )

virtual

Schedules a task to be run on the MessageLoop after the time delay has passed.

Note

There is latency between when the task is schedule and actually executed so that the actual execution time is: now + delay + message_loop_latency, where message_loop_latency is undefined and could be tens of milliseconds.

Reimplemented in flutter_runner::CompatTaskRunner.

Definition at line 33 of file task_runner.cc.

                                                     {
  loop_->PostTask(task, fml::TimePoint::Now() + delay);
}

References fml::TimePoint::Now().

Referenced by flutter::UnrefQueue< T >::DeleteTexture(), flutter::testing::PendingTests::OnTestBegin(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), and flutter::UnrefQueue< T >::Unref().

PostTask()

void fml::TaskRunner::PostTask ( const fml::closure &  task )

overridevirtual

Schedules task to be executed on the TaskRunner's associated event loop.

Implements fml::BasicTaskRunner.

Reimplemented in flutter_runner::CompatTaskRunner.

Definition at line 24 of file task_runner.cc.

                                                {
  loop_->PostTask(task, fml::TimePoint::Now());
}

References fml::TimePoint::Now().

Referenced by flutter::BM_PlatformMessageResponseDartComplete(), flutter::ScriptCompletionTaskObserver::DidProcessTask(), flutter::testing::ShellTest::DispatchPointerData(), flutter::Rasterizer::Draw(), flutter::EncodeImage(), flutter::VsyncWaiter::FireCallback(), flutter::PlatformViewEmbedder::EmbedderPlatformMessageHandler::HandlePlatformMessage(), flutter::ImageDecoderImpeller::ImageDecoderImpeller(), flutter::FragmentProgram::initFromAsset(), fml::Thread::Join(), flutter::testing::ShellTest::NotifyIdle(), flutter::GTestActivity::OnNativeWindowCreated(), flutter::testing::ShellTest::PumpOneFrame(), flutter::PersistentCache::Purge(), flutter::Engine::Run(), flutter::testing::ShellTest::SetViewportMetrics(), flutter::testing::SkiaGpuObjectTest::SkiaGpuObjectTest(), flutter::AndroidExternalViewEmbedder2::SubmitFlutterView(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), fml::testing::TEST(), TEST(), TEST(), flutter_runner::TEST(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TestSimulatedInputEvents(), flutter::PlatformMessageResponseDart::~PlatformMessageResponseDart(), and flutter::testing::TestTimeoutListener::~TestTimeoutListener().

PostTaskForTime()

void fml::TaskRunner::PostTaskForTime ( const fml::closure &  task, fml::TimePoint  target_time  )

virtual

Reimplemented in flutter_runner::CompatTaskRunner.

Definition at line 28 of file task_runner.cc.

                                                           {
  loop_->PostTask(task, target_time);
}

Referenced by flutter::VsyncWaiterEmbedder::OnEmbedderVsync(), TEST(), and flutter_runner::VsyncWaiter::VsyncWaiter().

RunNowAndFlushMessages()

void fml::TaskRunner::RunNowAndFlushMessages ( const fml::RefPtr< fml::TaskRunner > &  runner, const fml::closure &  task  )

static

Like RunNowOrPostTask, except that if the task can be immediately executed, an empty task will still be posted to the runner afterwards.

This is used to ensure that messages posted to Dart from the platform thread always flush the Dart event loop.

Definition at line 67 of file task_runner.cc.

                            {
  FML_DCHECK(runner);
  if (runner->RunsTasksOnCurrentThread()) {
    task();
    // Post an empty task to make the UI message loop run its task observers.
    // The observers will execute any Dart microtasks queued by the platform
    // message handler.
    runner->PostTask([] {});
  } else {
    runner->PostTask(task);
  }
}

References FML_DCHECK.

RunNowOrPostTask()

void fml::TaskRunner::RunNowOrPostTask ( const fml::RefPtr< fml::TaskRunner > &  runner, const fml::closure &  task  )

static

Executes the task directly if the TaskRunner runner is the TaskRunner associated with the current executing thread.

Definition at line 56 of file task_runner.cc.

                                                          {
  FML_DCHECK(runner);
  if (runner->RunsTasksOnCurrentThread()) {
    task();
  } else {
    runner->PostTask(task);
  }
}

References FML_DCHECK.

Referenced by flutter::ImageEncodingImpeller::ConvertImageToRaster(), flutter::testing::ShellTest::DestroyShell(), flutter::ScriptCompletionTaskObserver::DidProcessTask(), flutter::Picture::DoRasterizeToImage(), flutter::Animator::EnqueueTraceFlowId(), flutter::gpu::Context::GetDefaultContext(), flutter_runner::Engine::GetEngineReturnCode(), flutter::testing::GetRasterizerResourceCacheBytesSync(), flutter::HandleMessageOnHandler(), flutter::AndroidImageGenerator::MakeFromData(), flutter::PlatformViewAndroid::NotifyChanged(), flutter::PlatformView::NotifyCreated(), flutter::PlatformViewAndroid::NotifyCreated(), flutter::PlatformViewAndroid::NotifyDestroyed(), flutter::PlatformViewAndroid::NotifySurfaceWindowChanged(), flutter::testing::ShellTest::OnServiceProtocol(), flutter::testing::ShellTest::PlatformViewNotifyCreated(), flutter::testing::ShellTest::PlatformViewNotifyDestroyed(), flutter::testing::PostSync(), flutter::testing::RasterizerIsTornDown(), flutter::testing::ShellTest::RestartEngine(), flutter::testing::RunDartCodeInIsolate(), flutter::testing::ShellTest::RunEngine(), flutter::testing::AutoIsolateShutdown::RunInIsolateScope(), flutter::RunTester(), flutter::testing::ShellTest::SendEnginePlatformMessage(), flutter::testing::AutoIsolateShutdown::Shutdown(), flutter::Spawn(), flutter::StartupAndShutdownShell(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::ValidateShell(), flutter::testing::ShellTest::VSyncFlush(), flutter_runner::VsyncWaiter::VsyncWaiter(), flutter::AndroidContextGLSkia::~AndroidContextGLSkia(), flutter::testing::AutoIsolateShutdown::~AutoIsolateShutdown(), flutter::DlDeferredImageGPUSkia::~DlDeferredImageGPUSkia(), flutter::testing::TestIOManager::~TestIOManager(), and flutter_runner::VsyncWaiter::~VsyncWaiter().

RunsTasksOnCurrentThread()

bool fml::TaskRunner::RunsTasksOnCurrentThread ( )

virtual

Returns true when the current executing thread's TaskRunner matches this instance.

Reimplemented in flutter_runner::CompatTaskRunner.

Definition at line 43 of file task_runner.cc.

                                          {
  if (!fml::MessageLoop::IsInitializedForCurrentThread()) {
    return false;
  }

  const auto current_queue_id = MessageLoop::GetCurrentTaskQueueId();
  const auto loop_queue_id = loop_->GetTaskQueueId();

  return TaskRunnerChecker::RunsOnTheSameThread(current_queue_id,
                                                loop_queue_id);
}

References fml::MessageLoop::GetCurrentTaskQueueId(), fml::MessageLoop::IsInitializedForCurrentThread(), and fml::TaskRunnerChecker::RunsOnTheSameThread().

Referenced by flutter::testing::ShellTestVsyncWaiter::AwaitVSync(), flutter::testing::ConstantFiringVsyncWaiter::AwaitVSync(), flutter::PlatformViewIOS::CreateRenderingSurface(), flutter::ImageDecoderSkia::Decode(), flutter::Rasterizer::Draw(), flutter::testing::EmbedderTestTaskRunner::EmbedderTestTaskRunner(), flutter::Shell::GetMainDisplayRefreshRate(), flutter::ImageDecoder::ImageDecoder(), flutter::testing::RunDartCodeInIsolateOnUITaskRunner(), flutter::EmbedderEngine::RunTask(), flutter::VsyncWaiter::ScheduleSecondaryCallback(), flutter::PlatformMessageHandlerIos::SetMessageHandler(), flutter::PlatformViewIOS::SetOwnerViewController(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), flutter::testing::TEST_F(), and flutter::AndroidContextGLSkia::~AndroidContextGLSkia().

---

The documentation for this class was generated from the following files:

• fml/task_runner.h
• fml/task_runner.cc
