impeller::interop::PathBuilder Class Reference

#include <path_builder.h>

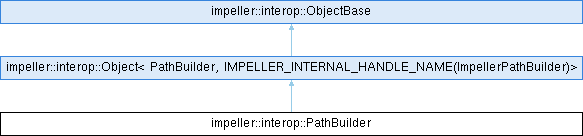

Inheritance diagram for impeller::interop::PathBuilder:

Public Member Functions
	PathBuilder ()
	~PathBuilder ()
	PathBuilder (const PathBuilder &)=delete
PathBuilder &	operator= (const PathBuilder &)=delete
void	MoveTo (const Point &point)
void	LineTo (const Point &location)
void	QuadraticCurveTo (const Point &control_point, const Point &end_point)
void	CubicCurveTo (const Point &control_point_1, const Point &control_point_2, const Point &end_point)
void	AddRect (const Rect &rect)
void	AddArc (const Rect &oval_bounds, Degrees start_angle, Degrees end_angle)
void	AddOval (const Rect &oval_bounds)
void	AddRoundedRect (const Rect &rect, const RoundingRadii &radii)
void	Close ()
ScopedObject< Path >	TakePath (FillType fill)
ScopedObject< Path >	CopyPath (FillType fill)
Public Member Functions inherited from impeller::interop::ObjectBase
	ObjectBase ()=default
virtual	~ObjectBase ()=default
	ObjectBase (const ObjectBase &)=delete
	ObjectBase (ObjectBase &&)=delete
ObjectBase &	operator= (const ObjectBase &)=delete
ObjectBase &	operator= (ObjectBase &&)=delete
void	Retain ()
void	Release ()
uint64_t	GetRefCountForTests () const

Additional Inherited Members
Public Types inherited from impeller::interop::Object< PathBuilder, IMPELLER_INTERNAL_HANDLE_NAME(ImpellerPathBuilder)>
using	InteropClass = PathBuilder
using	InteropCSibling = IMPELLER_INTERNAL_HANDLE_NAME(ImpellerPathBuilder)
Static Public Member Functions inherited from impeller::interop::ObjectBase
static void	SafeRetain (void *ptr)
static void	SafeRelease (void *ptr)

Detailed Description

Definition at line 19 of file path_builder.h.

Constructor & Destructor Documentation

PathBuilder() [1/2]

impeller::interop::PathBuilder::PathBuilder ( )

default

~PathBuilder()

impeller::interop::PathBuilder::~PathBuilder ( )

default

PathBuilder() [2/2]

impeller::interop::PathBuilder::PathBuilder ( const PathBuilder &  )

delete

Member Function Documentation

AddArc()

void impeller::interop::PathBuilder::AddArc	(	const Rect &	oval_bounds,
		Degrees	start_angle,
		Degrees	end_angle
	)

Definition at line 41 of file path_builder.cc.

                                            {
  builder_.addArc(ToSkiaType(oval_bounds),                 //
                  start_angle.degrees,                     //
                  end_angle.degrees - start_angle.degrees  // sweep
  );
}

References impeller::Degrees::degrees, and impeller::interop::ToSkiaType().

AddOval()

void impeller::interop::PathBuilder::AddOval

(

const Rect &

oval_bounds

)

Definition at line 50 of file path_builder.cc.

                                                 {
  builder_.addOval(ToSkiaType(oval_bounds));
}

References impeller::interop::ToSkiaType().

AddRect()

void impeller::interop::PathBuilder::AddRect

(

const Rect &

rect

)

Definition at line 37 of file path_builder.cc.

                                          {
  builder_.addRect(ToSkiaType(rect));
}

References impeller::interop::ToSkiaType().

AddRoundedRect()

void impeller::interop::PathBuilder::AddRoundedRect	(	const Rect &	rect,
		const RoundingRadii &	radii
	)

Definition at line 54 of file path_builder.cc.

                                                                             {
  builder_.addRRect(ToSkiaType(rect, radii));
}

References impeller::interop::ToSkiaType().

Close()

void impeller::interop::PathBuilder::Close

(

)

Definition at line 58 of file path_builder.cc.

                        {
  builder_.close();
}

CopyPath()

ScopedObject< Path > impeller::interop::PathBuilder::CopyPath

(

FillType

fill

)

Definition at line 67 of file path_builder.cc.

                                                      {
  builder_.setFillType(ToSkiaType(fill));
  return Create<Path>(builder_.snapshot());
}

References impeller::interop::ToSkiaType().

CubicCurveTo()

void impeller::interop::PathBuilder::CubicCurveTo	(	const Point &	control_point_1,
		const Point &	control_point_2,
		const Point &	end_point
	)

Definition at line 28 of file path_builder.cc.

                                                       {
  builder_.cubicTo(ToSkiaType(control_point_1),  //
                   ToSkiaType(control_point_2),  //
                   ToSkiaType(end_point)         //
  );
}

References impeller::interop::ToSkiaType().

LineTo()

void impeller::interop::PathBuilder::LineTo

(

const Point &

location

)

Definition at line 19 of file path_builder.cc.

                                              {
  builder_.lineTo(ToSkiaType(location));
}

References impeller::interop::ToSkiaType().

MoveTo()

void impeller::interop::PathBuilder::MoveTo

(

const Point &

point

)

Definition at line 15 of file path_builder.cc.

                                           {
  builder_.moveTo(ToSkiaType(point));
}

References impeller::interop::ToSkiaType().

operator=()

PathBuilder & impeller::interop::PathBuilder::operator= ( const PathBuilder &  )

delete

QuadraticCurveTo()

void impeller::interop::PathBuilder::QuadraticCurveTo	(	const Point &	control_point,
		const Point &	end_point
	)

Definition at line 23 of file path_builder.cc.

                                                           {
  builder_.quadTo(ToSkiaType(control_point), ToSkiaType(end_point));
}

References impeller::interop::ToSkiaType().

TakePath()

ScopedObject< Path > impeller::interop::PathBuilder::TakePath

(

FillType

fill

)

Definition at line 62 of file path_builder.cc.

                                                      {
  builder_.setFillType(ToSkiaType(fill));
  return Create<Path>(builder_.detach());
}

References impeller::interop::ToSkiaType().

---

The documentation for this class was generated from the following files:

• impeller/toolkit/interop/path_builder.h
• impeller/toolkit/interop/path_builder.cc
