ParagraphBuilder implementation using Skia's text layout module. More...

#include <paragraph_builder_skia.h>

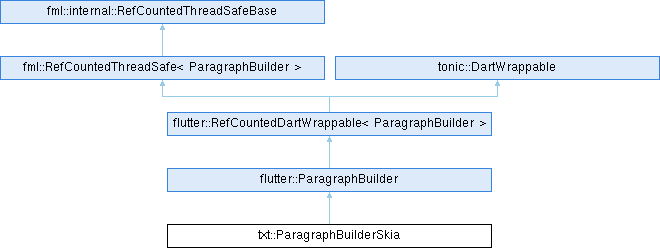

Inheritance diagram for txt::ParagraphBuilderSkia:

Public Member Functions
	ParagraphBuilderSkia (const ParagraphStyle &style, const std::shared_ptr< FontCollection > &font_collection, const bool impeller_enabled)

virtual	~ParagraphBuilderSkia ()

virtual void	PushStyle (const TextStyle &style) override

virtual void	Pop () override

virtual const TextStyle &	PeekStyle () override

virtual void	AddText (const std::u16string &text) override

virtual void	AddText (const uint8_t *utf8_data, size_t byte_length) override

virtual void	AddPlaceholder (PlaceholderRun &span) override

virtual std::unique_ptr< Paragraph >	Build () override

Public Member Functions inherited from flutter::ParagraphBuilder
	~ParagraphBuilder () override

void	pushStyle (const tonic::Int32List &encoded, const std::vector< std::string > &fontFamilies, double fontSize, double letterSpacing, double wordSpacing, double height, double decorationThickness, const std::string &locale, Dart_Handle background_objects, Dart_Handle background_data, Dart_Handle foreground_objects, Dart_Handle foreground_data, Dart_Handle shadows_data, Dart_Handle font_features_data, Dart_Handle font_variations_data)

void	pop ()

Dart_Handle	addText (const std::u16string &text)

void	addPlaceholder (double width, double height, unsigned alignment, double baseline_offset, unsigned baseline)

void	build (Dart_Handle paragraph_handle)

Public Member Functions inherited from flutter::RefCountedDartWrappable< ParagraphBuilder >
virtual void	RetainDartWrappableReference () const override

virtual void	ReleaseDartWrappableReference () const override

Public Member Functions inherited from fml::RefCountedThreadSafe< T >
void	Release () const

Public Member Functions inherited from fml::internal::RefCountedThreadSafeBase
void	AddRef () const

bool	HasOneRef () const

void	AssertHasOneRef () const

Public Member Functions inherited from tonic::DartWrappable
	DartWrappable ()

virtual const DartWrapperInfo &	GetDartWrapperInfo () const =0

Dart_Handle	CreateDartWrapper (DartState *dart_state)

void	AssociateWithDartWrapper (Dart_Handle wrappable)

void	ClearDartWrapper ()

Dart_WeakPersistentHandle	dart_wrapper () const

Friends
class	SkiaParagraphBuilderTests_ParagraphStrutStyle_Test

Additional Inherited Members
Public Types inherited from tonic::DartWrappable
enum	DartNativeFields { kPeerIndex , kNumberOfNativeFields }

Static Public Member Functions inherited from flutter::ParagraphBuilder
static void	Create (Dart_Handle wrapper, Dart_Handle encoded_handle, Dart_Handle strutData, const std::string &fontFamily, const std::vector< std::string > &strutFontFamilies, double fontSize, double height, const std::u16string &ellipsis, const std::string &locale)

Protected Member Functions inherited from fml::RefCountedThreadSafe< T >
	RefCountedThreadSafe ()

	~RefCountedThreadSafe ()

Protected Member Functions inherited from fml::internal::RefCountedThreadSafeBase
	RefCountedThreadSafeBase ()

	~RefCountedThreadSafeBase ()

bool	Release () const

void	Adopt ()

Protected Member Functions inherited from tonic::DartWrappable
virtual	~DartWrappable ()

Static Protected Member Functions inherited from tonic::DartWrappable
static Dart_PersistentHandle	GetTypeForWrapper (tonic::DartState *dart_state, const tonic::DartWrapperInfo &wrapper_info)

Detailed Description

ParagraphBuilder implementation using Skia's text layout module.

Note: Despite the suffix "Skia", this class is not specific to Skia and is also used with the Impeller backend.

Definition at line 20 of file paragraph_builder_skia.h.

Constructor & Destructor Documentation

◆ ParagraphBuilderSkia()

txt::ParagraphBuilderSkia::ParagraphBuilderSkia	(	const ParagraphStyle &	style,
		const std::shared_ptr< FontCollection > &	font_collection,
		const bool	impeller_enabled
	)

Definition at line 35 of file paragraph_builder_skia.cc.

    : base_style_(style.GetTextStyle()), impeller_enabled_(impeller_enabled) {
  builder_ = skt::ParagraphBuilder::make(
      TxtToSkia(style), font_collection->CreateSktFontCollection(),
      SkUnicodes::ICU::Make());
}

◆ ~ParagraphBuilderSkia()

txt::ParagraphBuilderSkia::~ParagraphBuilderSkia ( )

virtualdefault

Member Function Documentation

◆ AddPlaceholder()

void txt::ParagraphBuilderSkia::AddPlaceholder ( PlaceholderRun & span )

overridevirtual

Definition at line 70 of file paragraph_builder_skia.cc.

                                                              {
  skt::PlaceholderStyle placeholder_style;
  placeholder_style.fHeight = span.height;
  placeholder_style.fWidth = span.width;
  placeholder_style.fBaseline = static_cast<skt::TextBaseline>(span.baseline);
  placeholder_style.fBaselineOffset = span.baseline_offset;
  placeholder_style.fAlignment =
      static_cast<skt::PlaceholderAlignment>(span.alignment);

  builder_->addPlaceholder(placeholder_style);
}

References txt::PlaceholderRun::alignment, txt::PlaceholderRun::baseline, txt::PlaceholderRun::baseline_offset, txt::PlaceholderRun::height, and txt::PlaceholderRun::width.

◆ AddText() [1/2]

void txt::ParagraphBuilderSkia::AddText ( const std::u16string & text )

overridevirtual

Definition at line 61 of file paragraph_builder_skia.cc.

                                                           {
  builder_->addText(text);
}

References text.

◆ AddText() [2/2]

void txt::ParagraphBuilderSkia::AddText	(	const uint8_t *	utf8_data,
		size_t	byte_length
	)

overridevirtual

Definition at line 65 of file paragraph_builder_skia.cc.

                                                       {
  builder_->addText(reinterpret_cast<const char*>(utf8_data), byte_length);
}

◆ Build()

std::unique_ptr< Paragraph > txt::ParagraphBuilderSkia::Build ( )

overridevirtual

Definition at line 82 of file paragraph_builder_skia.cc.

                                                     {
  return std::make_unique<ParagraphSkia>(
      builder_->Build(), std::move(dl_paints_), impeller_enabled_);
}

◆ PeekStyle()

const TextStyle & txt::ParagraphBuilderSkia::PeekStyle ( )

overridevirtual

Definition at line 57 of file paragraph_builder_skia.cc.

                                                 {
  return txt_style_stack_.empty() ? base_style_ : txt_style_stack_.top();
}

◆ Pop()

void txt::ParagraphBuilderSkia::Pop ( )

overridevirtual

Definition at line 52 of file paragraph_builder_skia.cc.

                               {
  builder_->pop();
  txt_style_stack_.pop();
}

◆ PushStyle()

void txt::ParagraphBuilderSkia::PushStyle ( const TextStyle & style )

overridevirtual

Definition at line 47 of file paragraph_builder_skia.cc.

                                                           {
  builder_->pushStyle(TxtToSkia(style));
  txt_style_stack_.push(style);
}

Friends And Related Symbol Documentation

◆ SkiaParagraphBuilderTests_ParagraphStrutStyle_Test

friend class SkiaParagraphBuilderTests_ParagraphStrutStyle_Test

friend

Definition at line 37 of file paragraph_builder_skia.h.

The documentation for this class was generated from the following files:

txt/src/skia/paragraph_builder_skia.h
txt/src/skia/paragraph_builder_skia.cc
