External texture peered to a sequence of android.hardware.HardwareBuffers. More...

#include <image_external_texture.h>

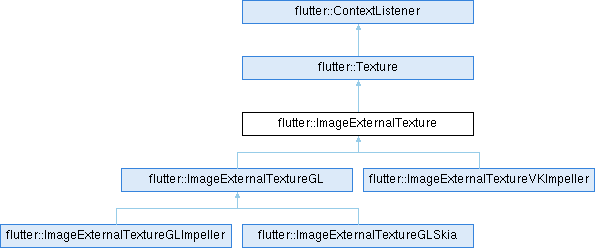

Inheritance diagram for flutter::ImageExternalTexture:

Public Types
enum class	ImageLifecycle { kReset , kKeepAlive }
	Whether the last image should be reset when the context is destroyed. More...

Public Member Functions
	ImageExternalTexture (int64_t id, const fml::jni::ScopedJavaGlobalRef< jobject > &image_texture_entry, const std::shared_ptr< PlatformViewAndroidJNI > &jni_facade, ImageLifecycle lifecycle)

virtual	~ImageExternalTexture ()

Public Member Functions inherited from flutter::Texture
	Texture (int64_t id)

virtual	~Texture ()

int64_t	Id ()

Public Member Functions inherited from flutter::ContextListener
	ContextListener ()

	~ContextListener ()

Protected Types
enum class	AttachmentState { kUninitialized , kAttached , kDetached }

Protected Member Functions
virtual void	ProcessFrame (PaintContext &context, const SkRect &bounds)=0
	Subclasses override this method to bind the latest representation of the hardware buffer wrapped by this texture instance to their own graphics package specific texture classes (SkImage, impeller::Texture, etc...).

virtual void	Attach (PaintContext &context)=0

virtual void	Detach ()=0

JavaLocalRef	AcquireLatestImage ()

void	CloseImage (const fml::jni::JavaRef< jobject > &image)

JavaLocalRef	HardwareBufferFor (const fml::jni::JavaRef< jobject > &image)

void	CloseHardwareBuffer (const fml::jni::JavaRef< jobject > &hardware_buffer)

AHardwareBuffer *	AHardwareBufferFor (const fml::jni::JavaRef< jobject > &hardware_buffer)

Protected Attributes
fml::jni::ScopedJavaGlobalRef< jobject >	image_texture_entry_

std::shared_ptr< PlatformViewAndroidJNI >	jni_facade_

AttachmentState	state_ = AttachmentState::kUninitialized

sk_sp< flutter::DlImage >	dl_image_

ImageLRU	image_lru_ = ImageLRU()

Detailed Description

External texture peered to a sequence of android.hardware.HardwareBuffers.

Android Hardware Buffers are available on newer versions of Android (API 29 and above).

This is an abstract base class and graphics packages provide concrete implementations of this class that bind hardware buffers to their own package-specific implementations of textures (SkImages, impeller::Texture, etc...).

Android Hardware Buffers allow binding to both OpenGL and Vulkan client-rendering APIs in a zero copy manner. Because of this graphics packages that support OpenGL and Vulkan can have multiple subclasses for each supported client-rendering API.

Definition at line 36 of file image_external_texture.h.

Member Enumeration Documentation

◆ AttachmentState

enum class flutter::ImageExternalTexture::AttachmentState

strongprotected

Enumerator
kUninitialized
kAttached
kDetached

Definition at line 83 of file image_external_texture.h.

83{ kUninitialized, kAttached, kDetached };

flutter::ImageExternalTexture::AttachmentState::kUninitialized

@ kUninitialized

flutter::ImageExternalTexture::AttachmentState::kDetached

@ kDetached

flutter::ImageExternalTexture::AttachmentState::kAttached

@ kAttached

◆ ImageLifecycle

enum class flutter::ImageExternalTexture::ImageLifecycle

strong

Whether the last image should be reset when the context is destroyed.

Enumerator
kReset
kKeepAlive

Definition at line 39 of file image_external_texture.h.

39{ kReset, kKeepAlive };

flutter::ImageExternalTexture::ImageLifecycle::kKeepAlive

@ kKeepAlive

flutter::ImageExternalTexture::ImageLifecycle::kReset

@ kReset

Constructor & Destructor Documentation

◆ ImageExternalTexture()

flutter::ImageExternalTexture::ImageExternalTexture	(	int64_t	id,
		const fml::jni::ScopedJavaGlobalRef< jobject > &	image_texture_entry,
		const std::shared_ptr< PlatformViewAndroidJNI > &	jni_facade,
		ImageLifecycle	lifecycle
	)

explicit

Definition at line 16 of file image_external_texture.cc.

    : Texture(id),
      image_texture_entry_(image_texture_entry),
      jni_facade_(jni_facade),
      texture_lifecycle_(lifecycle) {}

◆ ~ImageExternalTexture()

flutter::ImageExternalTexture::~ImageExternalTexture ( )

virtualdefault

Member Function Documentation

◆ AcquireLatestImage()

JavaLocalRef flutter::ImageExternalTexture::AcquireLatestImage ( )

protected

Definition at line 89 of file image_external_texture.cc.

                                                      {
  JNIEnv* env = fml::jni::AttachCurrentThread();
  FML_CHECK(env != nullptr);

  // ImageTextureEntry.acquireLatestImage.
  JavaLocalRef image_java =
      jni_facade_->ImageProducerTextureEntryAcquireLatestImage(
          JavaLocalRef(image_texture_entry_));
  return image_java;
}

References fml::jni::AttachCurrentThread(), FML_CHECK, image_texture_entry_, and jni_facade_.

Referenced by flutter::ImageExternalTextureGL::ProcessFrame().

◆ AHardwareBufferFor()

AHardwareBuffer * flutter::ImageExternalTexture::AHardwareBufferFor ( const fml::jni::JavaRef< jobject > & hardware_buffer )

protected

Definition at line 124 of file image_external_texture.cc.

                                                   {
  JNIEnv* env = fml::jni::AttachCurrentThread();
  FML_CHECK(env != nullptr);
  const auto& proc =
      impeller::android::GetProcTable().AHardwareBuffer_fromHardwareBuffer;
  return proc ? proc(env, hardware_buffer.obj()) : nullptr;
}

References fml::jni::AttachCurrentThread(), FML_CHECK, impeller::android::GetProcTable(), and fml::jni::JavaRef< T >::obj().

Referenced by flutter::ImageExternalTextureGL::UpdateImage().

◆ Attach()

virtual void flutter::ImageExternalTexture::Attach ( PaintContext & context )

protectedpure virtual

Implemented in flutter::ImageExternalTextureGL.

◆ CloseHardwareBuffer()

void flutter::ImageExternalTexture::CloseHardwareBuffer ( const fml::jni::JavaRef< jobject > & hardware_buffer )

protected

Definition at line 107 of file image_external_texture.cc.

                                                   {
  if (hardware_buffer.obj() == nullptr) {
    return;
  }
  jni_facade_->HardwareBufferClose(JavaLocalRef(hardware_buffer));
}

References jni_facade_, and fml::jni::JavaRef< T >::obj().

Referenced by flutter::ImageExternalTextureGL::ProcessFrame().

◆ CloseImage()

void flutter::ImageExternalTexture::CloseImage ( const fml::jni::JavaRef< jobject > & image )

protected

Definition at line 100 of file image_external_texture.cc.

                                                                         {
  if (image.obj() == nullptr) {
    return;
  }
  jni_facade_->ImageClose(JavaLocalRef(image));
}

References image, and jni_facade_.

◆ Detach()

virtual void flutter::ImageExternalTexture::Detach ( )

protectedpure virtual

Implemented in flutter::ImageExternalTextureGL.

◆ HardwareBufferFor()

JavaLocalRef flutter::ImageExternalTexture::HardwareBufferFor ( const fml::jni::JavaRef< jobject > & image )

protected

Definition at line 115 of file image_external_texture.cc.

                                         {
  if (image.obj() == nullptr) {
    return JavaLocalRef();
  }
  // Image.getHardwareBuffer.
  return jni_facade_->ImageGetHardwareBuffer(JavaLocalRef(image));
}

References image, and jni_facade_.

Referenced by flutter::ImageExternalTextureGL::ProcessFrame().

◆ ProcessFrame()

virtual void flutter::ImageExternalTexture::ProcessFrame	(	PaintContext &	context,
		const SkRect &	bounds
	)

protectedpure virtual

Subclasses override this method to bind the latest representation of the hardware buffer wrapped by this texture instance to their own graphics package specific texture classes (SkImage, impeller::Texture, etc...).

After a call to this method, attachment state of this instance must be kAttached. That is the responsibility of the subclass.

Parameters

	context	The context
[in]	bounds	The bounds

Implemented in flutter::ImageExternalTextureGL.

Member Data Documentation

◆ dl_image_

sk_sp<flutter::DlImage> flutter::ImageExternalTexture::dl_image_

protected

Definition at line 85 of file image_external_texture.h.

Referenced by flutter::ImageExternalTextureGL::UpdateImage().

◆ image_lru_

ImageLRU flutter::ImageExternalTexture::image_lru_ = ImageLRU()

protected

Definition at line 86 of file image_external_texture.h.

Referenced by flutter::ImageExternalTextureGL::Detach(), and flutter::ImageExternalTextureGL::UpdateImage().

◆ image_texture_entry_

fml::jni::ScopedJavaGlobalRef<jobject> flutter::ImageExternalTexture::image_texture_entry_

protected

Definition at line 80 of file image_external_texture.h.

Referenced by AcquireLatestImage().

◆ jni_facade_

std::shared_ptr<PlatformViewAndroidJNI> flutter::ImageExternalTexture::jni_facade_

protected

Definition at line 81 of file image_external_texture.h.

Referenced by AcquireLatestImage(), CloseHardwareBuffer(), CloseImage(), and HardwareBufferFor().

◆ state_

AttachmentState flutter::ImageExternalTexture::state_ = AttachmentState::kUninitialized

protected

Definition at line 84 of file image_external_texture.h.

Referenced by flutter::ImageExternalTextureGL::Attach().

The documentation for this class was generated from the following files:

shell/platform/android/image_external_texture.h
shell/platform/android/image_external_texture.cc
