#include <render_pipeline.h>

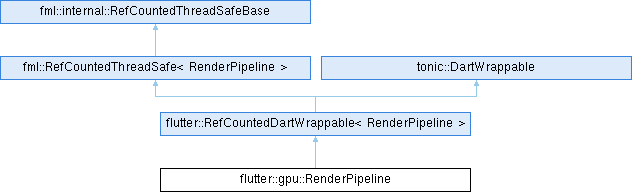

Inheritance diagram for flutter::gpu::RenderPipeline:

Public Member Functions
	RenderPipeline (fml::RefPtr< flutter::gpu::Shader > vertex_shader, fml::RefPtr< flutter::gpu::Shader > fragment_shader, std::shared_ptr< impeller::VertexDescriptor > vertex_descriptor)

	~RenderPipeline () override

void	BindToPipelineDescriptor (impeller::ShaderLibrary &library, impeller::PipelineDescriptor &desc)

Public Member Functions inherited from flutter::RefCountedDartWrappable< RenderPipeline >
virtual void	RetainDartWrappableReference () const override

virtual void	ReleaseDartWrappableReference () const override

Public Member Functions inherited from fml::RefCountedThreadSafe< T >
void	Release () const

Public Member Functions inherited from fml::internal::RefCountedThreadSafeBase
void	AddRef () const

bool	HasOneRef () const

void	AssertHasOneRef () const

Public Member Functions inherited from tonic::DartWrappable
	DartWrappable ()

virtual const DartWrapperInfo &	GetDartWrapperInfo () const =0

Dart_Handle	CreateDartWrapper (DartState *dart_state)

void	AssociateWithDartWrapper (Dart_Handle wrappable)

void	ClearDartWrapper ()

Dart_WeakPersistentHandle	dart_wrapper () const

Additional Inherited Members
Public Types inherited from tonic::DartWrappable
enum	DartNativeFields { kPeerIndex , kNumberOfNativeFields }

Protected Member Functions inherited from fml::RefCountedThreadSafe< T >
	RefCountedThreadSafe ()

	~RefCountedThreadSafe ()

Protected Member Functions inherited from fml::internal::RefCountedThreadSafeBase
	RefCountedThreadSafeBase ()

	~RefCountedThreadSafeBase ()

bool	Release () const

void	Adopt ()

Protected Member Functions inherited from tonic::DartWrappable
virtual	~DartWrappable ()

Static Protected Member Functions inherited from tonic::DartWrappable
static Dart_PersistentHandle	GetTypeForWrapper (tonic::DartState *dart_state, const tonic::DartWrapperInfo &wrapper_info)

Detailed Description

Definition at line 20 of file render_pipeline.h.

Constructor & Destructor Documentation

◆ RenderPipeline()

flutter::gpu::RenderPipeline::RenderPipeline	(	fml::RefPtr< flutter::gpu::Shader >	vertex_shader,
		fml::RefPtr< flutter::gpu::Shader >	fragment_shader,
		std::shared_ptr< impeller::VertexDescriptor >	vertex_descriptor
	)

Definition at line 27 of file render_pipeline.cc.

    : vertex_shader_(std::move(vertex_shader)),
      fragment_shader_(std::move(fragment_shader)),
      vertex_descriptor_(std::move(vertex_descriptor)) {
  // Register the descriptor set layouts contributed by each shader exactly
  // once, here at construction. Doing this in BindToPipelineDescriptor (as
  // earlier revisions did) would append the same layouts on every bind
  // since `RegisterDescriptorSetLayouts` accumulates rather than replaces.
  vertex_descriptor_->RegisterDescriptorSetLayouts(
      vertex_shader_->GetDescriptorSetLayouts().data(),
      vertex_shader_->GetDescriptorSetLayouts().size());
  vertex_descriptor_->RegisterDescriptorSetLayouts(
      fragment_shader_->GetDescriptorSetLayouts().data(),
      fragment_shader_->GetDescriptorSetLayouts().size());
}

References flutter::gpu::Shader::GetDescriptorSetLayouts().

◆ ~RenderPipeline()

flutter::gpu::RenderPipeline::~RenderPipeline ( )

overridedefault

Member Function Documentation

◆ BindToPipelineDescriptor()

void flutter::gpu::RenderPipeline::BindToPipelineDescriptor	(	impeller::ShaderLibrary &	library,
		impeller::PipelineDescriptor &	desc
	)

Definition at line 46 of file render_pipeline.cc.

                                      {
  desc.SetVertexDescriptor(vertex_descriptor_);

  desc.AddStageEntrypoint(vertex_shader_->GetFunctionFromLibrary(library));
  desc.AddStageEntrypoint(fragment_shader_->GetFunctionFromLibrary(library));
}

References impeller::PipelineDescriptor::AddStageEntrypoint(), flutter::gpu::Shader::GetFunctionFromLibrary(), and impeller::PipelineDescriptor::SetVertexDescriptor().

The documentation for this class was generated from the following files:

lib/gpu/render_pipeline.h
lib/gpu/render_pipeline.cc
