impeller::Allocator Class Reference

An object that allocates device memory. More...

#include <allocator.h>

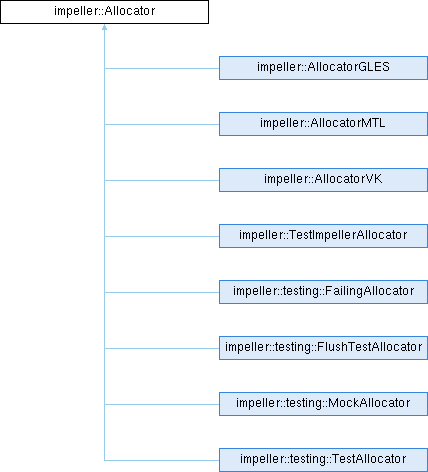

Inheritance diagram for impeller::Allocator:

Public Member Functions
virtual	~Allocator ()
bool	IsValid () const
std::shared_ptr< DeviceBuffer >	CreateBuffer (const DeviceBufferDescriptor &desc)
std::shared_ptr< Texture >	CreateTexture (const TextureDescriptor &desc, bool threadsafe=false)
	Creates a new texture.
virtual uint16_t	MinimumBytesPerRow (PixelFormat format) const
	Minimum value for row_bytes on a Texture. The row bytes parameter of that method must be aligned to this value.
std::shared_ptr< DeviceBuffer >	CreateBufferWithCopy (const uint8_t *buffer, size_t length)
std::shared_ptr< DeviceBuffer >	CreateBufferWithCopy (const fml::Mapping &mapping)
virtual ISize	GetMaxTextureSizeSupported () const =0
virtual void	DebugTraceMemoryStatistics () const
	Write debug memory usage information to the dart timeline in debug and profile modes.
virtual Bytes	DebugGetHeapUsage () const

Protected Member Functions
	Allocator ()
virtual std::shared_ptr< DeviceBuffer >	OnCreateBuffer (const DeviceBufferDescriptor &desc)=0
virtual std::shared_ptr< Texture >	OnCreateTexture (const TextureDescriptor &desc, bool threadsafe=false)=0

Detailed Description

An object that allocates device memory.

Definition at line 24 of file allocator.h.

Constructor & Destructor Documentation

~Allocator()

impeller::Allocator::~Allocator ( )

virtualdefault

Allocator()

impeller::Allocator::Allocator ( )

protecteddefault

Member Function Documentation

CreateBuffer()

std::shared_ptr< DeviceBuffer > impeller::Allocator::CreateBuffer

(

const DeviceBufferDescriptor &

desc

)

Definition at line 44 of file allocator.cc.

                                        {
  return OnCreateBuffer(desc);
}

References OnCreateBuffer().

Referenced by CreateBufferWithCopy().

CreateBufferWithCopy() [1/2]

std::shared_ptr< DeviceBuffer > impeller::Allocator::CreateBufferWithCopy

(

const fml::Mapping &

mapping

)

Definition at line 39 of file allocator.cc.

                               {
  return CreateBufferWithCopy(mapping.GetMapping(), mapping.GetSize());
}

References CreateBufferWithCopy(), fml::Mapping::GetMapping(), and fml::Mapping::GetSize().

CreateBufferWithCopy() [2/2]

std::shared_ptr< DeviceBuffer > impeller::Allocator::CreateBufferWithCopy	(	const uint8_t *	buffer,
		size_t	length
	)

Definition at line 18 of file allocator.cc.

                   {
  DeviceBufferDescriptor desc;
  desc.size = length;
  desc.storage_mode = StorageMode::kHostVisible;
  auto new_buffer = CreateBuffer(desc);

  if (!new_buffer) {
    return nullptr;
  }

  auto entire_range = Range{0, length};

  if (!new_buffer->CopyHostBuffer(buffer, entire_range)) {
    return nullptr;
  }

  return new_buffer;
}

References CreateBuffer(), impeller::kHostVisible, length, impeller::DeviceBufferDescriptor::size, and impeller::DeviceBufferDescriptor::storage_mode.

Referenced by CreateBufferWithCopy().

CreateTexture()

std::shared_ptr< Texture > impeller::Allocator::CreateTexture	(	const TextureDescriptor &	desc,
		bool	threadsafe = false
	)

Creates a new texture.

Parameters

[in]	desc	The descriptor of the texture to create.
[in]	threadsafe	Whether mutations to this texture should be protected with a threadsafe barrier.

This parameter only affects the OpenGLES rendering backend.

If any interaction with this texture (including creation) will be done on a thread other than where the OpenGLES context resides, then threadsafe, must be set to true.

Definition at line 49 of file allocator.cc.

                                                                   {
  const auto max_size = GetMaxTextureSizeSupported();
  if (desc.size.width > max_size.width || desc.size.height > max_size.height) {
    VALIDATION_LOG << "Requested texture size " << desc.size
                   << " exceeds maximum supported size of " << max_size;
    return nullptr;
  }

  if (desc.mip_count > desc.size.MipCount()) {
    VALIDATION_LOG << "Requested mip_count " << desc.mip_count
                   << " exceeds maximum supported for size " << desc.size;
    TextureDescriptor corrected_desc = desc;
    corrected_desc.mip_count = desc.size.MipCount();
    return OnCreateTexture(corrected_desc, threadsafe);
  }

  return OnCreateTexture(desc, threadsafe);
}

References GetMaxTextureSizeSupported(), impeller::TSize< T >::height, impeller::TextureDescriptor::mip_count, impeller::TSize< T >::MipCount(), OnCreateTexture(), impeller::TextureDescriptor::size, VALIDATION_LOG, and impeller::TSize< T >::width.

Referenced by impeller::RenderTarget::SetupDepthStencilAttachments().

DebugGetHeapUsage()

virtual Bytes impeller::Allocator::DebugGetHeapUsage ( ) const

inlinevirtual

Reimplemented in impeller::AllocatorMTL, and impeller::AllocatorVK.

Definition at line 72 of file allocator.h.

{ return Bytes{0}; }

DebugTraceMemoryStatistics()

virtual void impeller::Allocator::DebugTraceMemoryStatistics ( ) const

inlinevirtual

Write debug memory usage information to the dart timeline in debug and profile modes.

This is supported on both the Metal and Vulkan backends.

Definition at line 69 of file allocator.h.

{};

GetMaxTextureSizeSupported()

virtual ISize impeller::Allocator::GetMaxTextureSizeSupported ( ) const

pure virtual

Implemented in impeller::testing::FailingAllocator, impeller::testing::FlushTestAllocator, and impeller::testing::TestAllocator.

Referenced by CreateTexture().

IsValid()

bool impeller::Allocator::IsValid

(

)

const

MinimumBytesPerRow()

uint16_t impeller::Allocator::MinimumBytesPerRow ( PixelFormat  format ) const

virtual

Minimum value for row_bytes on a Texture. The row bytes parameter of that method must be aligned to this value.

Definition at line 69 of file allocator.cc.

                                                               {
  return BytesPerPixelForPixelFormat(format);
}

References impeller::BytesPerPixelForPixelFormat(), and format.

OnCreateBuffer()

virtual std::shared_ptr< DeviceBuffer > impeller::Allocator::OnCreateBuffer ( const DeviceBufferDescriptor &  desc )

protectedpure virtual

Implemented in impeller::testing::FailingAllocator, impeller::testing::FlushTestAllocator, and impeller::testing::TestAllocator.

Referenced by CreateBuffer().

OnCreateTexture()

virtual std::shared_ptr< Texture > impeller::Allocator::OnCreateTexture ( const TextureDescriptor &  desc, bool  threadsafe = false  )

protectedpure virtual

Implemented in impeller::testing::FailingAllocator, impeller::testing::FlushTestAllocator, and impeller::testing::TestAllocator.

Referenced by CreateTexture().

---

The documentation for this class was generated from the following files:

• impeller/core/allocator.h
• impeller/core/allocator.cc
