impeller::ComputePass Class Reference

Compute passes encode compute shader into the underlying command buffer. More...

#include <compute_pass.h>

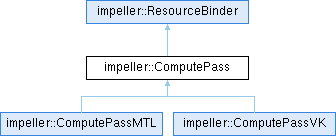

Inheritance diagram for impeller::ComputePass:

Public Member Functions
virtual	~ComputePass ()
virtual bool	IsValid () const =0
void	SetLabel (const std::string &label)
virtual void	SetCommandLabel (std::string_view label)=0
virtual void	SetPipeline (const std::shared_ptr< Pipeline< ComputePipelineDescriptor > > &pipeline)=0
virtual fml::Status	Compute (std::array< uint32_t, 3 > workgroup_count)=0
	Dispatch a grid of compute workgroups.
virtual void	AddBufferMemoryBarrier ()=0
	Ensures all previously encoded compute command's buffer writes are visible to any subsequent compute commands.
virtual void	AddTextureMemoryBarrier ()=0
	Ensures all previously encoded compute command's texture writes are visible to any subsequent compute commands.
virtual bool	EncodeCommands () const =0
	Encode the recorded commands to the underlying command buffer.
const Context &	GetContext () const
Public Member Functions inherited from impeller::ResourceBinder
virtual	~ResourceBinder ()=default
virtual bool	BindResource (ShaderStage stage, DescriptorType type, const ShaderUniformSlot &slot, const ShaderMetadata *metadata, BufferView view)=0
virtual bool	BindResource (ShaderStage stage, DescriptorType type, const SampledImageSlot &slot, const ShaderMetadata *metadata, std::shared_ptr< const Texture > texture, raw_ptr< const Sampler >)=0

Protected Member Functions
	ComputePass (std::shared_ptr< const Context > context)
virtual void	OnSetLabel (const std::string &label)=0

Protected Attributes
const std::shared_ptr< const Context >	context_

Detailed Description

Compute passes encode compute shader into the underlying command buffer.

See also

CommandBuffer

Definition at line 25 of file compute_pass.h.

Constructor & Destructor Documentation

~ComputePass()

impeller::ComputePass::~ComputePass ( )

virtualdefault

ComputePass()

impeller::ComputePass::ComputePass ( std::shared_ptr< const Context >  context )

explicitprotected

Definition at line 9 of file compute_pass.cc.

    : context_(std::move(context)) {}

Member Function Documentation

AddBufferMemoryBarrier()

virtual void impeller::ComputePass::AddBufferMemoryBarrier ( )

pure virtual

Ensures all previously encoded compute command's buffer writes are visible to any subsequent compute commands.

On Vulkan, it does not matter if the compute command is in a different command buffer, only that it is executed later in queue order.

AddTextureMemoryBarrier()

virtual void impeller::ComputePass::AddTextureMemoryBarrier ( )

pure virtual

Ensures all previously encoded compute command's texture writes are visible to any subsequent compute commands.

On Vulkan, it does not matter if the compute command is in a different command buffer, only that it is executed later in queue order.

Compute()

virtual fml::Status impeller::ComputePass::Compute ( std::array< uint32_t, 3 >  workgroup_count )

pure virtual

Dispatch a grid of compute workgroups.

        The components of `workgroup_count` are workgroup
        (threadgroup) counts, not invocation counts. The number of
        invocations per workgroup (the local size) is declared by the
        shader. The total invocations along an axis is therefore the
        workgroup count times the shader's local size.

Returns

A cancelled status if any dimension is zero.

EncodeCommands()

virtual bool impeller::ComputePass::EncodeCommands ( ) const

pure virtual

Encode the recorded commands to the underlying command buffer.

Returns

If the commands were encoded to the underlying command buffer.

GetContext()

const Context & impeller::ComputePass::GetContext ( ) const

inline

Definition at line 75 of file compute_pass.h.

{ return *context_; }

References context_.

IsValid()

virtual bool impeller::ComputePass::IsValid ( ) const

pure virtual

OnSetLabel()

virtual void impeller::ComputePass::OnSetLabel ( const std::string &  label )

protectedpure virtual

Referenced by SetLabel().

SetCommandLabel()

virtual void impeller::ComputePass::SetCommandLabel ( std::string_view  label )

pure virtual

SetLabel()

void impeller::ComputePass::SetLabel

(

const std::string &

label

)

Definition at line 14 of file compute_pass.cc.

                                                 {
  if (label.empty()) {
    return;
  }
  OnSetLabel(label);
}

References OnSetLabel().

SetPipeline()

virtual void impeller::ComputePass::SetPipeline ( const std::shared_ptr< Pipeline< ComputePipelineDescriptor > > &  pipeline )

pure virtual

Member Data Documentation

context_

const std::shared_ptr<const Context> impeller::ComputePass::context_

protected

Definition at line 78 of file compute_pass.h.

Referenced by GetContext().

---

The documentation for this class was generated from the following files:

• impeller/renderer/compute_pass.h
• impeller/renderer/compute_pass.cc
