impeller::PipelineLibrary Class Reference

#include <pipeline_library.h>

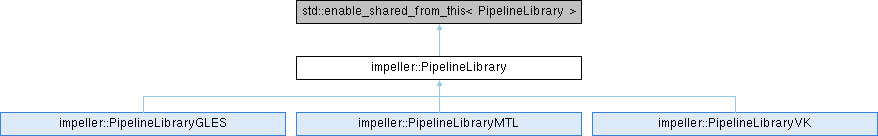

Inheritance diagram for impeller::PipelineLibrary:

Public Member Functions
virtual	~PipelineLibrary ()
PipelineFuture< PipelineDescriptor >	GetPipeline (std::optional< PipelineDescriptor > descriptor, bool async=true)
PipelineFuture< ComputePipelineDescriptor >	GetPipeline (std::optional< ComputePipelineDescriptor > descriptor, bool async=true)
virtual bool	IsValid () const =0
virtual PipelineFuture< PipelineDescriptor >	GetPipeline (PipelineDescriptor descriptor, bool async=true, bool threadsafe=false)=0
	Creates a pipeline.
virtual PipelineFuture< ComputePipelineDescriptor >	GetPipeline (ComputePipelineDescriptor descriptor, bool async=true)=0
virtual bool	HasPipeline (const PipelineDescriptor &descriptor)=0
virtual void	RemovePipelinesWithEntryPoint (std::shared_ptr< const ShaderFunction > function)=0
void	LogPipelineUsage (const PipelineDescriptor &p)
void	LogPipelineCreation (const PipelineDescriptor &p)
std::unordered_map< PipelineDescriptor, int, ComparableHash< PipelineDescriptor >, ComparableEqual< PipelineDescriptor > >	GetPipelineUseCounts () const

Protected Member Functions
	PipelineLibrary ()

Detailed Description

Definition at line 32 of file pipeline_library.h.

Constructor & Destructor Documentation

~PipelineLibrary()

impeller::PipelineLibrary::~PipelineLibrary ( )

virtualdefault

PipelineLibrary()

impeller::PipelineLibrary::PipelineLibrary ( )

protecteddefault

Member Function Documentation

GetPipeline() [1/4]

virtual PipelineFuture< ComputePipelineDescriptor > impeller::PipelineLibrary::GetPipeline ( ComputePipelineDescriptor  descriptor, bool  async = true  )

pure virtual

GetPipeline() [2/4]

virtual PipelineFuture< PipelineDescriptor > impeller::PipelineLibrary::GetPipeline ( PipelineDescriptor  descriptor, bool  async = true, bool  threadsafe = false  )

pure virtual

Creates a pipeline.

Parameters

[in]	descriptor	The descriptor of the texture to create.
[in]	async	Whether to allow pipeline creation to be deferred. If false, pipeline creation will block on the current thread.
[in]	threadsafe	Whether mutations to this texture should be protected with a threadsafe barrier.

This parameter only affects the OpenGLES rendering backend.

If any interaction with this texture (including creation) will be done on a thread other than where the OpenGLES context resides, then threadsafe, must be set to true.

GetPipeline() [3/4]

PipelineFuture< ComputePipelineDescriptor > impeller::PipelineLibrary::GetPipeline	(	std::optional< ComputePipelineDescriptor >	descriptor,
		bool	async = true
	)

Definition at line 29 of file pipeline_library.cc.

                {
  if (descriptor.has_value()) {
    return GetPipeline(descriptor.value(), async);
  }
  auto promise = std::make_shared<
      std::promise<std::shared_ptr<Pipeline<ComputePipelineDescriptor>>>>();
  promise->set_value(nullptr);
  return {descriptor, promise->get_future()};
}

References GetPipeline().

GetPipeline() [4/4]

PipelineFuture< PipelineDescriptor > impeller::PipelineLibrary::GetPipeline	(	std::optional< PipelineDescriptor >	descriptor,
		bool	async = true
	)

Definition at line 17 of file pipeline_library.cc.

                {
  if (descriptor.has_value()) {
    return GetPipeline(descriptor.value(), async);
  }
  auto promise = std::make_shared<
      std::promise<std::shared_ptr<Pipeline<PipelineDescriptor>>>>();
  promise->set_value(nullptr);
  return {descriptor, promise->get_future()};
}

References GetPipeline().

Referenced by GetPipeline(), and GetPipeline().

GetPipelineUseCounts()

std::unordered_map< PipelineDescriptor, int, ComparableHash< PipelineDescriptor >, ComparableEqual< PipelineDescriptor > > impeller::PipelineLibrary::GetPipelineUseCounts

(

)

const

Definition at line 63 of file pipeline_library.cc.

                                            {
  std::unordered_map<PipelineDescriptor, int,
                     ComparableHash<PipelineDescriptor>,
                     ComparableEqual<PipelineDescriptor>>
      counts;

#if FLUTTER_RUNTIME_MODE == FLUTTER_RUNTIME_MODE_DEBUG || \
    FLUTTER_RUNTIME_MODE == FLUTTER_RUNTIME_MODE_PROFILE
  ReaderLock lock(pipeline_use_counts_mutex_);
  counts = pipeline_use_counts_;
#endif
  return counts;
}

Referenced by impeller::testing::TEST(), and impeller::testing::TEST().

HasPipeline()

virtual bool impeller::PipelineLibrary::HasPipeline ( const PipelineDescriptor &  descriptor )

pure virtual

IsValid()

virtual bool impeller::PipelineLibrary::IsValid ( ) const

pure virtual

LogPipelineCreation()

void impeller::PipelineLibrary::LogPipelineCreation

(

const PipelineDescriptor &

p

)

Definition at line 41 of file pipeline_library.cc.

                                                                     {
#if FLUTTER_RUNTIME_MODE == FLUTTER_RUNTIME_MODE_DEBUG || \
    FLUTTER_RUNTIME_MODE == FLUTTER_RUNTIME_MODE_PROFILE
  WriterLock lock(pipeline_use_counts_mutex_);
  if (!pipeline_use_counts_.contains(p)) {
    pipeline_use_counts_[p] = 0;
  }
#endif
}

LogPipelineUsage()

void impeller::PipelineLibrary::LogPipelineUsage

(

const PipelineDescriptor &

p

)

Definition at line 51 of file pipeline_library.cc.

                                                                  {
#if FLUTTER_RUNTIME_MODE == FLUTTER_RUNTIME_MODE_DEBUG || \
    FLUTTER_RUNTIME_MODE == FLUTTER_RUNTIME_MODE_PROFILE
  WriterLock lock(pipeline_use_counts_mutex_);
  ++pipeline_use_counts_[p];
#endif
}

Referenced by impeller::testing::TEST(), and impeller::testing::TEST().

RemovePipelinesWithEntryPoint()

virtual void impeller::PipelineLibrary::RemovePipelinesWithEntryPoint ( std::shared_ptr< const ShaderFunction >  function )

pure virtual

---

The documentation for this class was generated from the following files:

• impeller/renderer/pipeline_library.h
• impeller/renderer/pipeline_library.cc
