#include <dl_blur_image_filter.h>

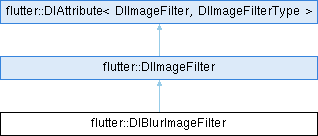

Inheritance diagram for flutter::DlBlurImageFilter:

Public Member Functions
	DlBlurImageFilter (DlScalar sigma_x, DlScalar sigma_y, DlTileMode tile_mode, std::optional< DlRect > bounds=std::nullopt)
	Creates an ImageFilter that applies a Gaussian blur to its input.

	DlBlurImageFilter (const DlBlurImageFilter *filter)

	DlBlurImageFilter (const DlBlurImageFilter &filter)

std::shared_ptr< DlImageFilter >	shared () const override

DlImageFilterType	type () const override

size_t	size () const override

const DlBlurImageFilter *	asBlur () const override

bool	modifies_transparent_black () const override

DlRect *	map_local_bounds (const DlRect &input_bounds, DlRect &output_bounds) const override

DlIRect *	map_device_bounds (const DlIRect &input_bounds, const DlMatrix &ctm, DlIRect &output_bounds) const override

DlIRect *	get_input_device_bounds (const DlIRect &output_bounds, const DlMatrix &ctm, DlIRect &input_bounds) const override

DlScalar	sigma_x () const

DlScalar	sigma_y () const

DlTileMode	tile_mode () const

std::optional< DlRect >	bounds () const

Public Member Functions inherited from flutter::DlImageFilter
virtual const DlDilateImageFilter *	asDilate () const

virtual const DlErodeImageFilter *	asErode () const

virtual const DlMatrixImageFilter *	asMatrix () const

virtual const DlLocalMatrixImageFilter *	asLocalMatrix () const

virtual std::shared_ptr< DlImageFilter >	makeWithLocalMatrix (const DlMatrix &matrix) const

virtual const DlComposeImageFilter *	asCompose () const

virtual const DlColorFilterImageFilter *	asColorFilter () const

virtual const DlRuntimeEffectImageFilter *	asRuntimeEffectFilter () const

virtual MatrixCapability	matrix_capability () const

Public Member Functions inherited from flutter::DlAttribute< DlImageFilter, DlImageFilterType >
bool	operator== (DlImageFilter const &other) const

bool	operator!= (DlImageFilter const &other) const

virtual	~DlAttribute ()=default

Static Public Member Functions
static std::shared_ptr< DlImageFilter >	Make (DlScalar sigma_x, DlScalar sigma_y, DlTileMode tile_mode, std::optional< DlRect > bounds=std::nullopt)

Static Public Member Functions inherited from flutter::DlImageFilter
static std::shared_ptr< DlImageFilter >	MakeBlur (DlScalar sigma_x, DlScalar sigma_y, DlTileMode tile_mode)

static std::shared_ptr< DlImageFilter >	MakeDilate (DlScalar radius_x, DlScalar radius_y)

static std::shared_ptr< DlImageFilter >	MakeErode (DlScalar radius_x, DlScalar radius_y)

static std::shared_ptr< DlImageFilter >	MakeMatrix (const DlMatrix &matrix, DlImageSampling sampling)

static std::shared_ptr< DlImageFilter >	MakeRuntimeEffect (sk_sp< DlRuntimeEffect > runtime_effect, std::vector< std::shared_ptr< DlColorSource > > samplers, std::shared_ptr< std::vector< uint8_t > > uniform_data)

static std::shared_ptr< DlImageFilter >	MakeColorFilter (const std::shared_ptr< const DlColorFilter > &filter)

static std::shared_ptr< DlImageFilter >	MakeCompose (const std::shared_ptr< DlImageFilter > &outer, const std::shared_ptr< DlImageFilter > &inner)

Protected Member Functions
bool	equals_ (const DlImageFilter &other) const override

Additional Inherited Members
Public Types inherited from flutter::DlImageFilter
enum class	MatrixCapability { kTranslate , kScaleTranslate , kComplex }

Static Protected Member Functions inherited from flutter::DlImageFilter
static DlVector2	map_vectors_affine (const DlMatrix &ctm, DlScalar x, DlScalar y)

static DlIRect *	inset_device_bounds (const DlIRect &input_bounds, DlScalar radius_x, DlScalar radius_y, const DlMatrix &ctm, DlIRect &output_bounds)

static DlIRect *	outset_device_bounds (const DlIRect &input_bounds, DlScalar radius_x, DlScalar radius_y, const DlMatrix &ctm, DlIRect &output_bounds)

Detailed Description

Definition at line 14 of file dl_blur_image_filter.h.

Constructor & Destructor Documentation

◆ DlBlurImageFilter() [1/3]

flutter::DlBlurImageFilter::DlBlurImageFilter	(	DlScalar	sigma_x,
		DlScalar	sigma_y,
		DlTileMode	tile_mode,
		std::optional< DlRect >	bounds = `std::nullopt`
	)

inline

Creates an ImageFilter that applies a Gaussian blur to its input.

Parameters

sigma_x	The standard deviation of the Gaussian kernel in the X direction.
sigma_y	The standard deviation of the Gaussian kernel in the Y direction.
bounds	An optional rectangle that enables "bounded blur" mode.
tile_mode	Defines how to sample from areas outside the bounds of the input texture.

If bounds is std::nullopt, a standard Gaussian blur is applied and to the entire surface.

If bounds is not std::nullopt, the filter performs a "bounded blur": the image filter substitutes transparent black for any sample it reads from outside the defined bounding rectangle. The final weighted sum is then divided by the total weight of the non-transparent samples (the effective alpha), resulting in opaque output.

The bounded mode prevents color bleeding from content adjacent to the bounds into the blurred area, and is typically used when the blur must be strictly contained within a clipped region, such as for iOS-style frosted glass effects.

The bounds rectangle is specified in the canvas's current coordinate space and is affected by the current transform; consequently, the bounds may not be axis-aligned in the final canvas coordinates.

Definition at line 45 of file dl_blur_image_filter.h.

      : sigma_x_(sigma_x),
        sigma_y_(sigma_y),
        tile_mode_(tile_mode),
        bounds_(bounds) {}

◆ DlBlurImageFilter() [2/3]

flutter::DlBlurImageFilter::DlBlurImageFilter ( const DlBlurImageFilter * filter )

inlineexplicit

Definition at line 53 of file dl_blur_image_filter.h.

      : DlBlurImageFilter(filter->sigma_x_,
                          filter->sigma_y_,
                          filter->tile_mode_,
                          filter->bounds_) {}

◆ DlBlurImageFilter() [3/3]

flutter::DlBlurImageFilter::DlBlurImageFilter ( const DlBlurImageFilter & filter )

inline

Definition at line 58 of file dl_blur_image_filter.h.

59 : DlBlurImageFilter(&filter) {}

Member Function Documentation

◆ asBlur()

const DlBlurImageFilter * flutter::DlBlurImageFilter::asBlur ( ) const

inlineoverridevirtual

Reimplemented from flutter::DlImageFilter.

Definition at line 74 of file dl_blur_image_filter.h.

74{ return this; }

Referenced by flutter::testing::TEST().

◆ bounds()

std::optional< DlRect > flutter::DlBlurImageFilter::bounds ( ) const

inline

Definition at line 92 of file dl_blur_image_filter.h.

92{ return bounds_; }

Referenced by Make().

◆ equals_()

bool flutter::DlBlurImageFilter::equals_ ( const DlImageFilter & other ) const

overrideprotectedvirtual

Implements flutter::DlAttribute< DlImageFilter, DlImageFilterType >.

Definition at line 47 of file dl_blur_image_filter.cc.

                                                                {
  FML_DCHECK(other.type() == DlImageFilterType::kBlur);
  auto that = static_cast<const DlBlurImageFilter*>(&other);
  return (DlScalarNearlyEqual(sigma_x_, that->sigma_x_) &&
          DlScalarNearlyEqual(sigma_y_, that->sigma_y_) &&
          tile_mode_ == that->tile_mode_ && bounds_ == that->bounds_);
}

References flutter::DlScalarNearlyEqual(), FML_DCHECK, flutter::kBlur, and flutter::DlAttribute< D, T >::type().

◆ get_input_device_bounds()

DlIRect * flutter::DlBlurImageFilter::get_input_device_bounds	(	const DlIRect &	output_bounds,
		const DlMatrix &	ctm,
		DlIRect &	input_bounds
	)		const

overridevirtual

Implements flutter::DlImageFilter.

Definition at line 39 of file dl_blur_image_filter.cc.

                                 {
  // Blurs are symmetric in terms of output-for-input and input-for-output
  return map_device_bounds(output_bounds, ctm, input_bounds);
}

References map_device_bounds().

◆ Make()

std::shared_ptr< DlImageFilter > flutter::DlBlurImageFilter::Make	(	DlScalar	sigma_x,
		DlScalar	sigma_y,
		DlTileMode	tile_mode,
		std::optional< DlRect >	bounds = `std::nullopt`
	)

static

Definition at line 9 of file dl_blur_image_filter.cc.

                                {
  if (!std::isfinite(sigma_x) || !std::isfinite(sigma_y)) {
    return nullptr;
  }
  if (sigma_x < SK_ScalarNearlyZero && sigma_y < SK_ScalarNearlyZero) {
    return nullptr;
  }
  sigma_x = (sigma_x < SK_ScalarNearlyZero) ? 0 : sigma_x;
  sigma_y = (sigma_y < SK_ScalarNearlyZero) ? 0 : sigma_y;
  return std::make_shared<DlBlurImageFilter>(sigma_x, sigma_y, tile_mode,
                                             bounds);
}

References bounds(), sigma_x(), sigma_y(), and tile_mode().

Referenced by flutter::ImageFilter::filter(), flutter::ImageFilter::initBlur(), flutter::DlImageFilter::MakeBlur(), impeller::interop::ImageFilter::MakeBlur(), flutter::testing::TEST(), and impeller::testing::TEST_P().

◆ map_device_bounds()

DlIRect * flutter::DlBlurImageFilter::map_device_bounds	(	const DlIRect &	input_bounds,
		const DlMatrix &	ctm,
		DlIRect &	output_bounds
	)		const

overridevirtual

Implements flutter::DlImageFilter.

Definition at line 32 of file dl_blur_image_filter.cc.

                                                                            {
  return outset_device_bounds(input_bounds, sigma_x_ * 3.0f, sigma_y_ * 3.0f,
                              ctm, output_bounds);
}

References flutter::DlImageFilter::outset_device_bounds().

Referenced by get_input_device_bounds().

◆ map_local_bounds()

DlRect * flutter::DlBlurImageFilter::map_local_bounds	(	const DlRect &	input_bounds,
		DlRect &	output_bounds
	)		const

overridevirtual

Implements flutter::DlImageFilter.

Definition at line 26 of file dl_blur_image_filter.cc.

                                                                         {
  output_bounds = input_bounds.Expand(sigma_x_ * 3.0f, sigma_y_ * 3.0f);
  return &output_bounds;
}

References impeller::TRect< T >::Expand().

◆ modifies_transparent_black()

bool flutter::DlBlurImageFilter::modifies_transparent_black ( ) const

inlineoverridevirtual

Implements flutter::DlImageFilter.

Definition at line 76 of file dl_blur_image_filter.h.

76{ return false; }

◆ shared()

std::shared_ptr< DlImageFilter > flutter::DlBlurImageFilter::shared ( ) const

inlineoverridevirtual

Implements flutter::DlAttribute< DlImageFilter, DlImageFilterType >.

Definition at line 67 of file dl_blur_image_filter.h.

                                                       {
    return std::make_shared<DlBlurImageFilter>(this);
  }

Referenced by flutter::testing::TEST(), and impeller::testing::TEST_P().

◆ sigma_x()

DlScalar flutter::DlBlurImageFilter::sigma_x ( ) const

inline

Definition at line 89 of file dl_blur_image_filter.h.

89{ return sigma_x_; }

Referenced by flutter::ImageFilter::filter(), Make(), flutter::testing::DisplayListStreamDispatcher::out(), flutter::testing::TEST(), and flutter::ToSk().

◆ sigma_y()

DlScalar flutter::DlBlurImageFilter::sigma_y ( ) const

inline

Definition at line 90 of file dl_blur_image_filter.h.

90{ return sigma_y_; }

Referenced by flutter::ImageFilter::filter(), Make(), flutter::testing::DisplayListStreamDispatcher::out(), flutter::testing::TEST(), and flutter::ToSk().

◆ size()

size_t flutter::DlBlurImageFilter::size ( ) const

inlineoverridevirtual

Implements flutter::DlAttribute< DlImageFilter, DlImageFilterType >.

Definition at line 72 of file dl_blur_image_filter.h.

72{ return sizeof(*this); }

◆ tile_mode()

DlTileMode flutter::DlBlurImageFilter::tile_mode ( ) const

inline

Definition at line 91 of file dl_blur_image_filter.h.

91{ return tile_mode_; }

Referenced by flutter::ImageFilter::filter(), Make(), flutter::testing::DisplayListStreamDispatcher::out(), flutter::DlSkCanvasDispatcher::saveLayer(), flutter::DlSkCanvasAdapter::SaveLayer(), flutter::testing::TEST(), and flutter::ToSk().

◆ type()

DlImageFilterType flutter::DlBlurImageFilter::type ( ) const

inlineoverridevirtual

Implements flutter::DlAttribute< DlImageFilter, DlImageFilterType >.

Definition at line 71 of file dl_blur_image_filter.h.

71{ return DlImageFilterType::kBlur; }

References flutter::kBlur.

The documentation for this class was generated from the following files:

display_list/effects/image_filters/dl_blur_image_filter.h
display_list/effects/image_filters/dl_blur_image_filter.cc
