#include <dl_color_source.h>

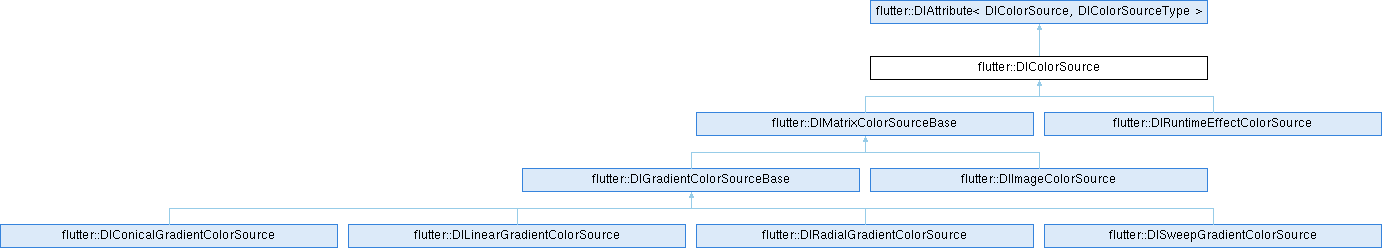

Inheritance diagram for flutter::DlColorSource:

Public Member Functions
virtual bool	is_opaque () const =0

virtual bool	isUIThreadSafe () const =0
	If the underlying platform data held by this object is held in a way that it can be stored and potentially released from the UI thread, this method returns true.

virtual bool	isGradient () const
	If the underlying platform data represents a gradient.

virtual const DlImageColorSource *	asImage () const

virtual const DlLinearGradientColorSource *	asLinearGradient () const

virtual const DlRadialGradientColorSource *	asRadialGradient () const

virtual const DlConicalGradientColorSource *	asConicalGradient () const

virtual const DlSweepGradientColorSource *	asSweepGradient () const

virtual const DlRuntimeEffectColorSource *	asRuntimeEffect () const

Public Member Functions inherited from flutter::DlAttribute< DlColorSource, DlColorSourceType >
virtual DlColorSourceType	type () const=0

virtual size_t	size () const=0

virtual std::shared_ptr< DlColorSource >	shared () const=0

bool	operator== (DlColorSource const &other) const

bool	operator!= (DlColorSource const &other) const

virtual	~DlAttribute ()=default

Static Public Member Functions
static std::shared_ptr< DlColorSource >	MakeImage (const sk_sp< const DlImage > &image, DlTileMode horizontal_tile_mode, DlTileMode vertical_tile_mode, DlImageSampling sampling=DlImageSampling::kLinear, const DlMatrix *matrix=nullptr)

static std::shared_ptr< DlColorSource >	MakeLinear (const DlPoint start_point, const DlPoint end_point, uint32_t stop_count, const DlColor colors, const float stops, DlTileMode tile_mode, const DlMatrix *matrix=nullptr)

static std::shared_ptr< DlColorSource >	MakeLinear (const DlPoint start_point, const DlPoint end_point, uint32_t stop_count, const DlScalar colors_argb, const float stops, DlTileMode tile_mode, const DlMatrix *matrix=nullptr)
	Make a linear gradient.

static std::shared_ptr< DlColorSource >	MakeRadial (DlPoint center, DlScalar radius, uint32_t stop_count, const DlColor colors, const float stops, DlTileMode tile_mode, const DlMatrix *matrix=nullptr)

static std::shared_ptr< DlColorSource >	MakeRadial (DlPoint center, DlScalar radius, uint32_t stop_count, const DlScalar colors_argb, const float stops, DlTileMode tile_mode, const DlMatrix *matrix=nullptr)
	Make a radial gradient.

static std::shared_ptr< DlColorSource >	MakeConical (DlPoint start_center, DlScalar start_radius, DlPoint end_center, DlScalar end_radius, uint32_t stop_count, const DlColor colors, const float stops, DlTileMode tile_mode, const DlMatrix *matrix=nullptr)

static std::shared_ptr< DlColorSource >	MakeConical (DlPoint start_center, DlScalar start_radius, DlPoint end_center, DlScalar end_radius, uint32_t stop_count, const DlScalar colors_argb, const float stops, DlTileMode tile_mode, const DlMatrix *matrix=nullptr)
	Make a conical gradient.

static std::shared_ptr< DlColorSource >	MakeSweep (DlPoint center, DlScalar start, DlScalar end, uint32_t stop_count, const DlColor colors, const float stops, DlTileMode tile_mode, const DlMatrix *matrix=nullptr)

static std::shared_ptr< DlColorSource >	MakeSweep (DlPoint center, DlScalar start, DlScalar end, uint32_t stop_count, const DlScalar colors_argb, const float stops, DlTileMode tile_mode, const DlMatrix *matrix=nullptr)
	Make a sweep gradient.

static std::shared_ptr< DlColorSource >	MakeRuntimeEffect (sk_sp< DlRuntimeEffect > runtime_effect, std::vector< std::shared_ptr< DlColorSource > > samplers, std::shared_ptr< std::vector< uint8_t > > uniform_data)

Protected Member Functions
	DlColorSource ()=default

Protected Member Functions inherited from flutter::DlAttribute< DlColorSource, DlColorSourceType >
virtual bool	equals_ (DlColorSource const &other) const=0

Detailed Description

Definition at line 44 of file dl_color_source.h.

Constructor & Destructor Documentation

◆ DlColorSource()

flutter::DlColorSource::DlColorSource ( )

protecteddefault

Member Function Documentation

◆ asConicalGradient()

virtual const DlConicalGradientColorSource * flutter::DlColorSource::asConicalGradient ( ) const

inlinevirtual

Reimplemented in flutter::DlConicalGradientColorSource.

Definition at line 188 of file dl_color_source.h.

                                                                        {
    return nullptr;
  }

Referenced by impeller::Paint::CreateContents(), flutter::testing::DisplayListStreamDispatcher::setColorSource(), flutter::testing::TEST(), and flutter::ToSk().

◆ asImage()

virtual const DlImageColorSource * flutter::DlColorSource::asImage ( ) const

inlinevirtual

Reimplemented in flutter::DlImageColorSource.

Definition at line 172 of file dl_color_source.h.

172{ return nullptr; }

Referenced by impeller::Paint::CreateContents(), impeller::Canvas::DrawVertices(), flutter::testing::DisplayListStreamDispatcher::setColorSource(), and flutter::ToSk().

◆ asLinearGradient()

virtual const DlLinearGradientColorSource * flutter::DlColorSource::asLinearGradient ( ) const

inlinevirtual

Reimplemented in flutter::DlLinearGradientColorSource.

Definition at line 176 of file dl_color_source.h.

                                                                      {
    return nullptr;
  }

Referenced by impeller::Paint::CreateContents(), flutter::testing::DisplayListStreamDispatcher::setColorSource(), flutter::testing::TEST(), and flutter::ToSk().

◆ asRadialGradient()

virtual const DlRadialGradientColorSource * flutter::DlColorSource::asRadialGradient ( ) const

inlinevirtual

Reimplemented in flutter::DlRadialGradientColorSource.

Definition at line 182 of file dl_color_source.h.

                                                                      {
    return nullptr;
  }

Referenced by impeller::Paint::CreateContents(), flutter::testing::DisplayListStreamDispatcher::setColorSource(), flutter::testing::TEST(), and flutter::ToSk().

◆ asRuntimeEffect()

virtual const DlRuntimeEffectColorSource * flutter::DlColorSource::asRuntimeEffect ( ) const

inlinevirtual

Reimplemented in flutter::DlRuntimeEffectColorSource.

Definition at line 198 of file dl_color_source.h.

                                                                    {
    return nullptr;
  }

Referenced by impeller::Paint::CreateContents(), flutter::testing::TEST(), and flutter::ToSk().

◆ asSweepGradient()

virtual const DlSweepGradientColorSource * flutter::DlColorSource::asSweepGradient ( ) const

inlinevirtual

Reimplemented in flutter::DlSweepGradientColorSource.

Definition at line 194 of file dl_color_source.h.

                                                                    {
    return nullptr;
  }

Referenced by impeller::Paint::CreateContents(), flutter::testing::DisplayListStreamDispatcher::setColorSource(), flutter::testing::TEST(), and flutter::ToSk().

◆ is_opaque()

virtual bool flutter::DlColorSource::is_opaque ( ) const

pure virtual

Implemented in flutter::DlGradientColorSourceBase, flutter::DlImageColorSource, and flutter::DlRuntimeEffectColorSource.

◆ isGradient()

virtual bool flutter::DlColorSource::isGradient ( ) const

inlinevirtual

If the underlying platform data represents a gradient.

        TODO(matanl): Remove this flag when the Skia backend is
        removed, https://github.com/flutter/flutter/issues/112498.

Returns: True if the class represents the output of a gradient.

Reimplemented in flutter::DlGradientColorSourceBase.

Definition at line 168 of file dl_color_source.h.

168{ return false; }

Referenced by flutter::DlSkPaintDispatchHelper::setColorSource().

◆ isUIThreadSafe()

virtual bool flutter::DlColorSource::isUIThreadSafe ( ) const

pure virtual

If the underlying platform data held by this object is held in a way that it can be stored and potentially released from the UI thread, this method returns true.

Returns: True if the class has no GPU related resources or if any that it holds are held in a thread-safe manner.

Implemented in flutter::DlConicalGradientColorSource, flutter::DlImageColorSource, flutter::DlLinearGradientColorSource, flutter::DlRadialGradientColorSource, flutter::DlRuntimeEffectColorSource, and flutter::DlSweepGradientColorSource.

◆ MakeConical() [1/2]

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeConical	(	DlPoint	start_center,
		DlScalar	start_radius,
		DlPoint	end_center,
		DlScalar	end_radius,
		uint32_t	stop_count,
		const DlColor *	colors,
		const float *	stops,
		DlTileMode	tile_mode,
		const DlMatrix *	matrix = `nullptr`
	)

static

Definition at line 120 of file dl_color_source.cc.

                            {
  size_t needed =
      CalculateGradientSize<DlConicalGradientColorSource>(stop_count);
  void* storage = ::operator new(needed);

  std::shared_ptr<DlConicalGradientColorSource> ret;
  ret.reset(new (storage) DlConicalGradientColorSource(
                start_center, start_radius, end_center, end_radius, stop_count,
                colors, stops, tile_mode, matrix),
            DlGradientDeleter);
  return ret;
}

References flutter::DlGradientDeleter().

Referenced by impeller::testing::CanRenderConicalGradientWithDithering(), flutter::CanvasGradient::initTwoPointConical(), impeller::interop::ColorSource::MakeConicalGradient(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), impeller::testing::TEST_F(), and impeller::testing::TEST_P().

◆ MakeConical() [2/2]

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeConical	(	DlPoint	start_center,
		DlScalar	start_radius,
		DlPoint	end_center,
		DlScalar	end_radius,
		uint32_t	stop_count,
		const DlScalar *	colors_argb,
		const float *	stops,
		DlTileMode	tile_mode,
		const DlMatrix *	matrix = `nullptr`
	)

static

Make a conical gradient.

Parameters

colors_argb colors_argb Array of DlScalars that represents colors in the ARGB format, in the extended srgb colorspace.

Definition at line 142 of file dl_color_source.cc.

                            {
  size_t needed =
      CalculateGradientSize<DlConicalGradientColorSource>(stop_count);

  void* storage = ::operator new(needed);

  std::shared_ptr<DlConicalGradientColorSource> ret;
  ret.reset(new (storage) DlConicalGradientColorSource(
                start_center, start_radius, end_center, end_radius, stop_count,
                colors_argb, stops, tile_mode, matrix),
            DlGradientDeleter);
  return ret;
}

References flutter::DlGradientDeleter().

◆ MakeImage()

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeImage	(	const sk_sp< const DlImage > &	image,
		DlTileMode	horizontal_tile_mode,
		DlTileMode	vertical_tile_mode,
		DlImageSampling	sampling = `DlImageSampling::kLinear`,
		const DlMatrix *	matrix = `nullptr`
	)

static

Definition at line 23 of file dl_color_source.cc.

                            {
  return std::make_shared<DlImageColorSource>(
      image, horizontal_tile_mode, vertical_tile_mode, sampling, matrix);
}

References image.

◆ MakeLinear() [1/2]

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeLinear	(	const DlPoint	start_point,
		const DlPoint	end_point,
		uint32_t	stop_count,
		const DlColor *	colors,
		const float *	stops,
		DlTileMode	tile_mode,
		const DlMatrix *	matrix = `nullptr`
	)

static

Definition at line 41 of file dl_color_source.cc.

                            {
  size_t needed =
      CalculateGradientSize<DlLinearGradientColorSource>(stop_count);
  void* storage = ::operator new(needed);

  std::shared_ptr<DlLinearGradientColorSource> ret;
  ret.reset(new (storage)
                DlLinearGradientColorSource(start_point, end_point, stop_count,
                                            colors, stops, tile_mode, matrix),
            DlGradientDeleter);
  return ret;
}

References flutter::DlGradientDeleter().

◆ MakeLinear() [2/2]

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeLinear	(	const DlPoint	start_point,
		const DlPoint	end_point,
		uint32_t	stop_count,
		const DlScalar *	colors_argb,
		const float *	stops,
		DlTileMode	tile_mode,
		const DlMatrix *	matrix = `nullptr`
	)

static

Make a linear gradient.

Parameters

colors_argb Array of DlScalars that represents colors in the ARGB format, in the extended srgb colorspace.

Definition at line 61 of file dl_color_source.cc.

                            {
  size_t needed =
      CalculateGradientSize<DlLinearGradientColorSource>(stop_count);
  void* storage = ::operator new(needed);

  std::shared_ptr<DlLinearGradientColorSource> ret;
  ret.reset(new (storage) DlLinearGradientColorSource(start_point, end_point,
                                                      stop_count, colors_argb,
                                                      stops, tile_mode, matrix),
            DlGradientDeleter);
  return ret;
}

References flutter::DlGradientDeleter().

◆ MakeRadial() [1/2]

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeRadial	(	DlPoint	center,
		DlScalar	radius,
		uint32_t	stop_count,
		const DlColor *	colors,
		const float *	stops,
		DlTileMode	tile_mode,
		const DlMatrix *	matrix = `nullptr`
	)

static

Definition at line 81 of file dl_color_source.cc.

                            {
  size_t needed =
      CalculateGradientSize<DlRadialGradientColorSource>(stop_count);
  void* storage = ::operator new(needed);

  std::shared_ptr<DlRadialGradientColorSource> ret;
  ret.reset(new (storage) DlRadialGradientColorSource(
                center, radius, stop_count, colors, stops, tile_mode, matrix),
            DlGradientDeleter);
  return ret;
}

References flutter::DlGradientDeleter().

◆ MakeRadial() [2/2]

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeRadial	(	DlPoint	center,
		DlScalar	radius,
		uint32_t	stop_count,
		const DlScalar *	colors_argb,
		const float *	stops,
		DlTileMode	tile_mode,
		const DlMatrix *	matrix = `nullptr`
	)

static

Make a radial gradient.

Parameters

colors_argb Array of DlScalars that represents colors in the ARGB format, in the extended srgb colorspace.

Definition at line 100 of file dl_color_source.cc.

                            {
  size_t needed =
      CalculateGradientSize<DlRadialGradientColorSource>(stop_count);
  void* storage = ::operator new(needed);

  std::shared_ptr<DlRadialGradientColorSource> ret;
  ret.reset(
      new (storage) DlRadialGradientColorSource(
          center, radius, stop_count, colors_argb, stops, tile_mode, matrix),
      DlGradientDeleter);
  return ret;
}

References flutter::DlGradientDeleter().

◆ MakeRuntimeEffect()

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeRuntimeEffect	(	sk_sp< DlRuntimeEffect >	runtime_effect,
		std::vector< std::shared_ptr< DlColorSource > >	samplers,
		std::shared_ptr< std::vector< uint8_t > >	uniform_data
	)

static

Definition at line 205 of file dl_color_source.cc.

                                                    {
  FML_DCHECK(uniform_data != nullptr);
  return std::make_shared<DlRuntimeEffectColorSource>(
      std::move(runtime_effect), std::move(samplers), std::move(uniform_data));
}

References FML_DCHECK.

Referenced by flutter::FragmentProgram::MakeDlColorSource(), impeller::interop::ColorSource::MakeFragmentProgram(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST_F(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), and impeller::testing::TEST_P().

◆ MakeSweep() [1/2]

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeSweep	(	DlPoint	center,
		DlScalar	start,
		DlScalar	end,
		uint32_t	stop_count,
		const DlColor *	colors,
		const float *	stops,
		DlTileMode	tile_mode,
		const DlMatrix *	matrix = `nullptr`
	)

static

Definition at line 165 of file dl_color_source.cc.

                            {
  size_t needed = CalculateGradientSize<DlSweepGradientColorSource>(stop_count);
  void* storage = ::operator new(needed);

  std::shared_ptr<DlSweepGradientColorSource> ret;
  ret.reset(new (storage)
                DlSweepGradientColorSource(center, start, end, stop_count,
                                           colors, stops, tile_mode, matrix),
            DlGradientDeleter);
  return ret;
}

References flutter::DlGradientDeleter(), end, and start.

Referenced by impeller::testing::CanRenderSweepGradientWithDithering(), flutter::CanvasGradient::initSweep(), impeller::interop::ColorSource::MakeSweepGradient(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), flutter::testing::TEST(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), and impeller::testing::TEST_P().

◆ MakeSweep() [2/2]

std::shared_ptr< DlColorSource > flutter::DlColorSource::MakeSweep	(	DlPoint	center,
		DlScalar	start,
		DlScalar	end,
		uint32_t	stop_count,
		const DlScalar *	colors_argb,
		const float *	stops,
		DlTileMode	tile_mode,
		const DlMatrix *	matrix = `nullptr`
	)

static

Make a sweep gradient.

Parameters

colors_argb Array of DlScalars that represents colors in the ARGB format, in the extended srgb colorspace.

Definition at line 185 of file dl_color_source.cc.

                            {
  size_t needed = CalculateGradientSize<DlSweepGradientColorSource>(stop_count);
  void* storage = ::operator new(needed);

  std::shared_ptr<DlSweepGradientColorSource> ret;
  ret.reset(new (storage) DlSweepGradientColorSource(center, start, end,
                                                     stop_count, colors_argb,
                                                     stops, tile_mode, matrix),
            DlGradientDeleter);
  return ret;
}

References flutter::DlGradientDeleter(), end, and start.

The documentation for this class was generated from the following files:

display_list/effects/dl_color_source.h
display_list/effects/dl_color_source.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ DlColorSource()

Member Function Documentation

◆ asConicalGradient()

◆ asImage()

◆ asLinearGradient()

◆ asRadialGradient()

◆ asRuntimeEffect()

◆ asSweepGradient()

◆ is_opaque()

◆ isGradient()

◆ isUIThreadSafe()

◆ MakeConical() [1/2]

◆ MakeConical() [2/2]

◆ MakeImage()

◆ MakeLinear() [1/2]

◆ MakeLinear() [2/2]

◆ MakeRadial() [1/2]

◆ MakeRadial() [2/2]

◆ MakeRuntimeEffect()

◆ MakeSweep() [1/2]

◆ MakeSweep() [2/2]
