#include <geometry.h>

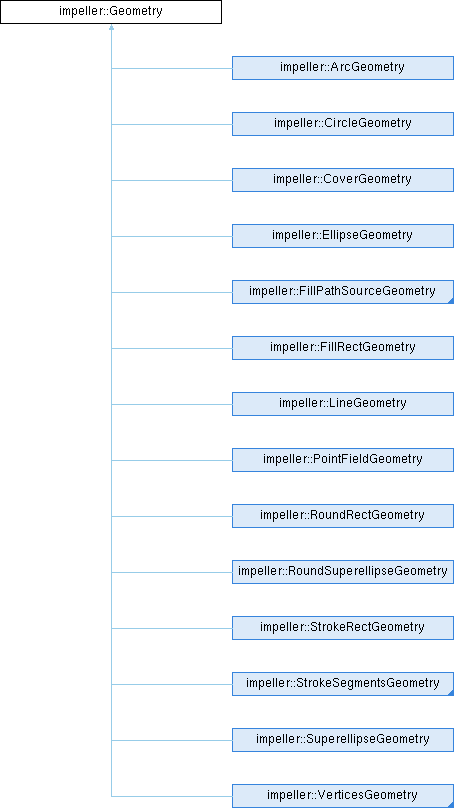

Inheritance diagram for impeller::Geometry:

Public Member Functions
virtual	~Geometry ()

virtual GeometryResult	GetPositionBuffer (const ContentContext &renderer, const Entity &entity, RenderPass &pass) const =0

virtual GeometryResult::Mode	GetResultMode () const

virtual std::optional< Rect >	GetCoverage (const Matrix &transform) const =0
	The coverage rectangle of this geometry, transformed by the `transform` argument.

virtual bool	CoversArea (const Matrix &transform, const IRect &rect) const
	Determines if this geometry, transformed by the given `transform`, will completely cover all of the pixels within the given integer `rect`.

virtual bool	IsAxisAlignedRect () const

virtual bool	CanApplyMaskFilter () const

virtual Scalar	ComputeAlphaCoverage (const Matrix &transform) const

Static Public Member Functions
static std::unique_ptr< Geometry >	MakeFillPath (const flutter::DlPath &path, std::optional< Rect > inner_rect=std::nullopt)

static std::unique_ptr< Geometry >	MakeStrokePath (const flutter::DlPath &path, const StrokeParameters &stroke={})

static std::unique_ptr< Geometry >	MakeCover ()

static std::unique_ptr< Geometry >	MakeRect (const Rect &rect)

static std::unique_ptr< Geometry >	MakeOval (const Rect &rect)

static std::unique_ptr< Geometry >	MakeLine (const Point &p0, const Point &p1, const StrokeParameters &stroke)

static std::unique_ptr< Geometry >	MakeCircle (const Point &center, Scalar radius)

static std::unique_ptr< Geometry >	MakeStrokedCircle (const Point &center, Scalar radius, Scalar stroke_width)

static std::unique_ptr< Geometry >	MakeFilledArc (const Rect &oval_bounds, Degrees start, Degrees sweep, bool include_center)

static std::unique_ptr< Geometry >	MakeStrokedArc (const Rect &oval_bounds, Degrees start, Degrees sweep, const StrokeParameters &stroke)

static std::unique_ptr< Geometry >	MakeRoundRect (const Rect &rect, const Size &radii)

static std::unique_ptr< Geometry >	MakeRoundSuperellipse (const Rect &rect, Scalar corner_radius)

static Scalar	ComputeStrokeAlphaCoverage (const Matrix &entity, Scalar stroke_width)
	Compute an alpha value to simulate lower coverage of fractional pixel strokes.

static GeometryResult	ComputePositionGeometry (const ContentContext &renderer, const Tessellator::VertexGenerator &generator, const Entity &entity, RenderPass &pass)

Detailed Description

Definition at line 50 of file geometry.h.

Constructor & Destructor Documentation

◆ ~Geometry()

virtual impeller::Geometry::~Geometry ( )

inlinevirtual

Definition at line 52 of file geometry.h.

52{}

Member Function Documentation

◆ CanApplyMaskFilter()

bool impeller::Geometry::CanApplyMaskFilter ( ) const

virtual

Reimplemented in impeller::DlVerticesGeometry, and impeller::CoverGeometry.

Definition at line 144 of file geometry.cc.

                                        {
  return true;
}

◆ ComputeAlphaCoverage()

virtual Scalar impeller::Geometry::ComputeAlphaCoverage ( const Matrix & transform ) const

inlinevirtual

Reimplemented in impeller::ArcGeometry, impeller::CircleGeometry, impeller::LineGeometry, and impeller::StrokeSegmentsGeometry.

Definition at line 135 of file geometry.h.

                                                                     {
    return 1.0;
  }

Referenced by impeller::ColorSourceContents::AppliesAlphaForStrokeCoverage(), impeller::SolidColorContents::Render(), and impeller::TiledTextureContents::Render().

◆ ComputePositionGeometry()

GeometryResult impeller::Geometry::ComputePositionGeometry	(	const ContentContext &	renderer,
		const Tessellator::VertexGenerator &	generator,
		const Entity &	entity,
		RenderPass &	pass
	)

static

Definition at line 26 of file geometry.cc.

                      {
  using VT = SolidFillVertexShader::PerVertexData;

  size_t count = generator.GetVertexCount();

  return GeometryResult{
      .type = generator.GetTriangleType(),
      .vertex_buffer =
          {
              .vertex_buffer = renderer.GetTransientsDataBuffer().Emplace(
                  count * sizeof(VT), alignof(VT),
                  [&generator](uint8_t* buffer) {
                    auto vertices = reinterpret_cast<VT*>(buffer);
                    generator.GenerateVertices([&vertices](const Point& p) {
                      *vertices++ = {
                          .position = p,
                      };
                    });
                    FML_DCHECK(vertices == reinterpret_cast<VT*>(buffer) +
                                               generator.GetVertexCount());
                  }),
              .vertex_count = count,
              .index_type = IndexType::kNone,
          },
      .transform = entity.GetShaderTransform(pass),
  };
}

References impeller::HostBuffer::Emplace(), FML_DCHECK, impeller::Tessellator::VertexGenerator::GenerateVertices(), impeller::Entity::GetShaderTransform(), impeller::ContentContext::GetTransientsDataBuffer(), impeller::Tessellator::VertexGenerator::GetTriangleType(), impeller::Tessellator::VertexGenerator::GetVertexCount(), impeller::kNone, and impeller::GeometryResult::type.

Referenced by impeller::CircleGeometry::GetPositionBuffer().

◆ ComputeStrokeAlphaCoverage()

Scalar impeller::Geometry::ComputeStrokeAlphaCoverage	(	const Matrix &	entity,
		Scalar	stroke_width
	)

static

Compute an alpha value to simulate lower coverage of fractional pixel strokes.

Definition at line 149 of file geometry.cc.

                                                                 {
  Scalar scaled_stroke_width = transform.GetMaxBasisLengthXY() * stroke_width;
  if (scaled_stroke_width == 0.0 || scaled_stroke_width >= kMinStrokeSize) {
    return 1.0;
  }
  // This scalling is eyeballed from Skia.
  return std::clamp(scaled_stroke_width * 2.0f, 0.f, 1.f);
}

References impeller::kMinStrokeSize, and transform.

Referenced by impeller::ArcGeometry::ComputeAlphaCoverage(), impeller::CircleGeometry::ComputeAlphaCoverage(), impeller::LineGeometry::ComputeAlphaCoverage(), and impeller::StrokeSegmentsGeometry::ComputeAlphaCoverage().

◆ CoversArea()

bool impeller::Geometry::CoversArea	(	const Matrix &	transform,
		const IRect &	rect
	)		const

virtual

Determines if this geometry, transformed by the given transform, will completely cover all of the pixels within the given integer rect.

The integer rect, by definition, will contain all of the area covered by any pixel within its boundary.

The return value can be a conservative estimate which will still be useful for certain optimizations. It may return false for obscure cases that might actually contain all of the pixels if it is too computationally costly to prove containment, but it should never return 'true' unless the implementation can prove that all pixels are fully covered (rendered) by the geometry.

Returns: true if the transformed geometry is guaranteed to cover the given rect. May return false in some cases where the transformed geometry does in fact cover the rect.

Reimplemented in impeller::ArcGeometry, impeller::CircleGeometry, impeller::CoverGeometry, impeller::EllipseGeometry, impeller::FillPathSourceGeometry, impeller::LineGeometry, impeller::FillRectGeometry, impeller::RoundRectGeometry, impeller::FillRoundRectGeometry, impeller::RoundSuperellipseGeometry, impeller::SuperellipseGeometry, and impeller::UberSDFGeometry.

Definition at line 136 of file geometry.cc.

                                                                          {
  return false;
}

Referenced by impeller::SolidColorContents::AsBackgroundColor(), and impeller::UberSDFContents::AsBackgroundColor().

◆ GetCoverage()

virtual std::optional< Rect > impeller::Geometry::GetCoverage ( const Matrix & transform ) const

pure virtual

The coverage rectangle of this geometry, transformed by the transform argument.

Implemented in impeller::DlVerticesGeometry, impeller::CircleGeometry, impeller::LineGeometry, impeller::PointFieldGeometry, impeller::FillRectGeometry, impeller::StrokeRectGeometry, impeller::StrokePathSourceGeometry, impeller::ArcStrokeGeometry, and impeller::UberSDFGeometry.

Referenced by impeller::Canvas::ClipGeometry(), impeller::ColorSourceContents::DrawGeometry(), impeller::ColorSourceContents::GetCoverage(), impeller::SolidColorContents::GetCoverage(), impeller::UberSDFContents::GetCoverage(), and impeller::TiledTextureContents::RenderToSnapshot().

◆ GetPositionBuffer()

virtual GeometryResult impeller::Geometry::GetPositionBuffer	(	const ContentContext &	renderer,
		const Entity &	entity,
		RenderPass &	pass
	)		const

pure virtual

Implemented in impeller::DlVerticesGeometry, impeller::CircleGeometry, impeller::FillRectGeometry, impeller::StrokeRectGeometry, and impeller::UberSDFGeometry.

Referenced by impeller::Canvas::ClipGeometry(), impeller::ColorSourceContents::DefaultCreateGeometryCallback(), impeller::ColorSourceContents::DrawGeometry(), and impeller::UberSDFContents::Render().

◆ GetResultMode()

GeometryResult::Mode impeller::Geometry::GetResultMode ( ) const

virtual

Definition at line 58 of file geometry.cc.

                                                 {
  return GeometryResult::Mode::kNormal;
}

References impeller::GeometryResult::kNormal.

Referenced by impeller::ColorSourceContents::DrawGeometry().

◆ IsAxisAlignedRect()

bool impeller::Geometry::IsAxisAlignedRect ( ) const

virtual

Reimplemented in impeller::ArcGeometry, impeller::CircleGeometry, impeller::EllipseGeometry, impeller::LineGeometry, impeller::FillRectGeometry, impeller::RoundRectGeometry, impeller::RoundSuperellipseGeometry, impeller::SuperellipseGeometry, and impeller::UberSDFGeometry.

Definition at line 140 of file geometry.cc.

                                       {
  return false;
}

Referenced by impeller::Canvas::ClipGeometry().

◆ MakeCircle()

std::unique_ptr< Geometry > impeller::Geometry::MakeCircle	(	const Point &	center,
		Scalar	radius
	)

static

Definition at line 97 of file geometry.cc.

                                                              {
  return std::make_unique<CircleGeometry>(center, radius);
}

Referenced by impeller::testing::TEST().

◆ MakeCover()

std::unique_ptr< Geometry > impeller::Geometry::MakeCover ( )

static

Definition at line 79 of file geometry.cc.

                                            {
  return std::make_unique<CoverGeometry>();
}

Referenced by impeller::testing::TEST_P(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), and impeller::testing::TEST_P().

◆ MakeFilledArc()

std::unique_ptr< Geometry > impeller::Geometry::MakeFilledArc	(	const Rect &	oval_bounds,
		Degrees	start,
		Degrees	sweep,
		bool	include_center
	)

static

Definition at line 108 of file geometry.cc.

                                                                       {
  return std::make_unique<ArcGeometry>(
      Arc(oval_bounds, start, sweep, include_center));
}

References start.

Referenced by impeller::testing::TEST().

◆ MakeFillPath()

std::unique_ptr< Geometry > impeller::Geometry::MakeFillPath	(	const flutter::DlPath &	path,
		std::optional< Rect >	inner_rect = `std::nullopt`
	)

static

Definition at line 62 of file geometry.cc.

                                  {
  return std::make_unique<FillPathGeometry>(path, inner_rect);
}

◆ MakeLine()

std::unique_ptr< Geometry > impeller::Geometry::MakeLine	(	const Point &	p0,
		const Point &	p1,
		const StrokeParameters &	stroke
	)

static

Definition at line 91 of file geometry.cc.

                                                                             {
  return std::make_unique<LineGeometry>(p0, p1, stroke);
}

References p1.

Referenced by impeller::testing::TEST().

◆ MakeOval()

std::unique_ptr< Geometry > impeller::Geometry::MakeOval ( const Rect & rect )

static

Definition at line 87 of file geometry.cc.

                                                           {
  return std::make_unique<EllipseGeometry>(rect);
}

◆ MakeRect()

std::unique_ptr< Geometry > impeller::Geometry::MakeRect ( const Rect & rect )

static

Definition at line 83 of file geometry.cc.

                                                           {
  return std::make_unique<FillRectGeometry>(rect);
}

Referenced by impeller::Canvas::DrawVertices(), impeller::testing::TEST(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), impeller::testing::TEST_P(), and impeller::testing::TEST_P().

◆ MakeRoundRect()

std::unique_ptr< Geometry > impeller::Geometry::MakeRoundRect	(	const Rect &	rect,
		const Size &	radii
	)

static

Definition at line 125 of file geometry.cc.

                                                                     {
  return std::make_unique<RoundRectGeometry>(rect, radii);
}

Referenced by impeller::testing::TEST().

◆ MakeRoundSuperellipse()

std::unique_ptr< Geometry > impeller::Geometry::MakeRoundSuperellipse	(	const Rect &	rect,
		Scalar	corner_radius
	)

static

Definition at line 130 of file geometry.cc.

                          {
  return std::make_unique<RoundSuperellipseGeometry>(rect, corner_radius);
}

Referenced by impeller::testing::TEST_P(), impeller::testing::TEST_P(), and impeller::testing::TEST_P().

◆ MakeStrokedArc()

std::unique_ptr< Geometry > impeller::Geometry::MakeStrokedArc	(	const Rect &	oval_bounds,
		Degrees	start,
		Degrees	sweep,
		const StrokeParameters &	stroke
	)

static

Definition at line 116 of file geometry.cc.

                                    {
  return std::make_unique<ArcGeometry>(Arc(oval_bounds, start, sweep, false),
                                       stroke);
}

References start.

Referenced by impeller::testing::TEST(), and impeller::testing::TEST_P().

◆ MakeStrokedCircle()

std::unique_ptr< Geometry > impeller::Geometry::MakeStrokedCircle	(	const Point &	center,
		Scalar	radius,
		Scalar	stroke_width
	)

static

Definition at line 102 of file geometry.cc.

                                                                           {
  return std::make_unique<CircleGeometry>(center, radius, stroke_width);
}

Referenced by impeller::testing::TEST().

◆ MakeStrokePath()

std::unique_ptr< Geometry > impeller::Geometry::MakeStrokePath	(	const flutter::DlPath &	path,
		const StrokeParameters &	stroke = `{}`
	)

static

Definition at line 68 of file geometry.cc.

                                    {
  // Skia behaves like this.
  StrokeParameters parameters = stroke;
  if (parameters.miter_limit < 0) {
    parameters.miter_limit = 4.0;
  }
  return std::make_unique<StrokePathGeometry>(path, parameters);
}

References impeller::StrokeParameters::miter_limit.

The documentation for this class was generated from the following files:

impeller/entity/geometry/geometry.h
impeller/entity/geometry/geometry.cc
